Excavators
GG800N
Working weight
850 kg
Engine power
8.6 kW / 3600 rpm
Bucket capacity
0.025 cbm
Max. digging depth
1650 mm
Engine model
Diesel Euro 5
Main pump
Wayne Hydraulic
Bucket width
300 mm
Max. digging height
2610 mm
Base price excl. VAT
4.700,00 €
Additional equipment
0,00 €
Total price
excl. VAT and shipping costs
excl. VAT and shipping costs
4.700,00 €
Additional equipment
Check out our offer
Technical Data
Specification
Operating Weight:
850 kg
Bucket Capacity:
0.025 cbm
Bucket Width:
300 mm
Engine:
Gunter Grossmann Euro 5 Diesel
Rated Power:
8.6 kw/3600r/min
Main pump:
Wanye Hydraulic
Hydraulic Pressure:
16 MPa
Swing Motor:
Dali
Travel Motor:
Dali
Travel Speed:
1.5 km/h
Working Range
Max. Digging Depth:
1650 mm
Max. Digging Height:
2610 mm
Max. Dumping Height:
1850 mm
Max. Digging Radius on Ground:
2890 mm
Swing Radius:
360°
Max. Dozer Blade Lift Height:
345 mm
Max. Dozer Blade Digging Depth:
255 mm
Main Dimensions
Length:
2770 mm
Width:
930 mm
Height:
2100 mm
Total Track Length:
1230 mm
Undercarriage Width:
896 mm
Track Width:
200 mm
Additional Equipment (for reference)
200 mm Bucket
500 mm Bucket
800 mm Bucket
800 mm Hydraulic bucket
Hydraulic breaker
Quick coupler
Earth auger
Rake
Ripper tooth
Wood grapple

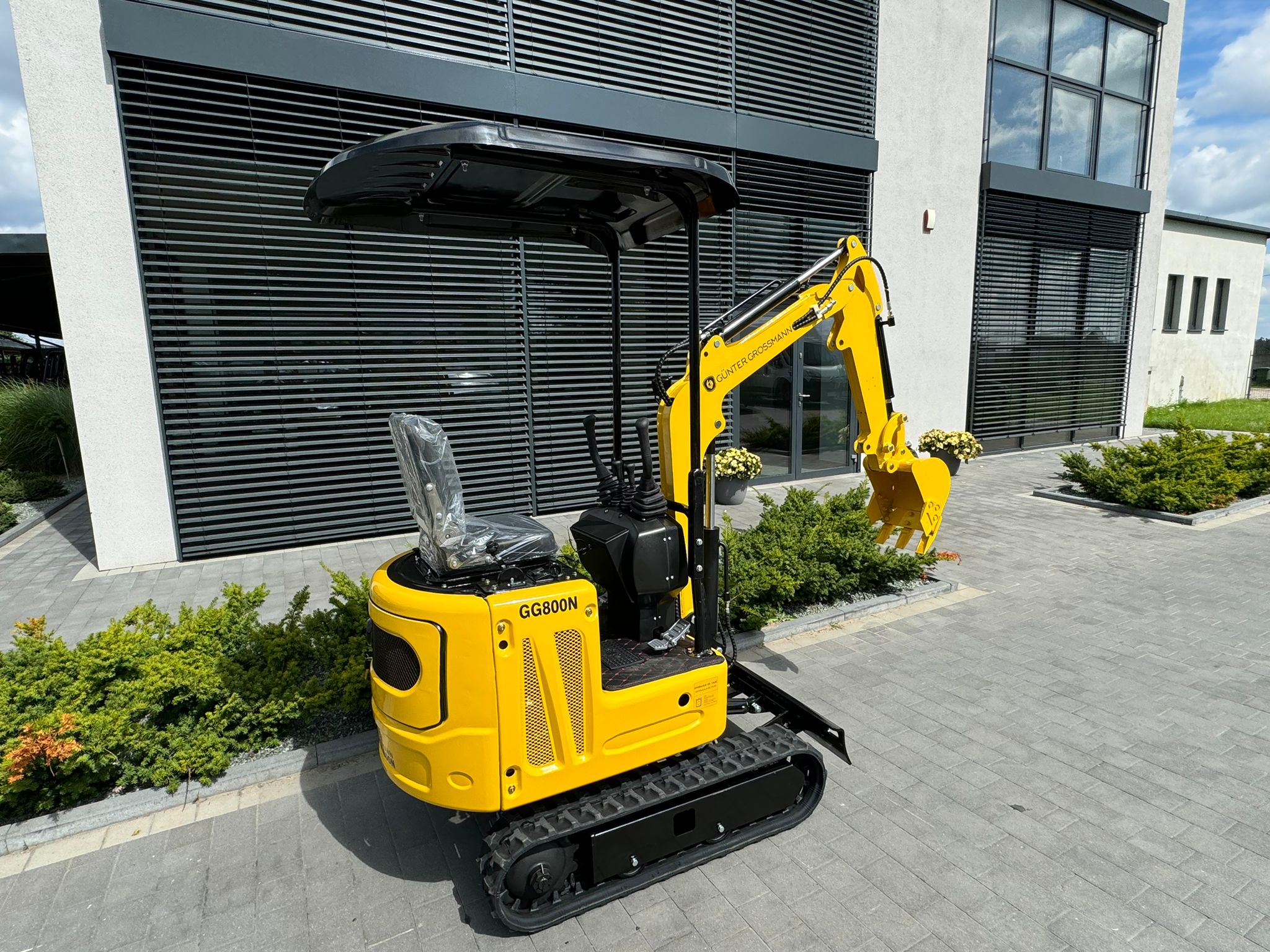

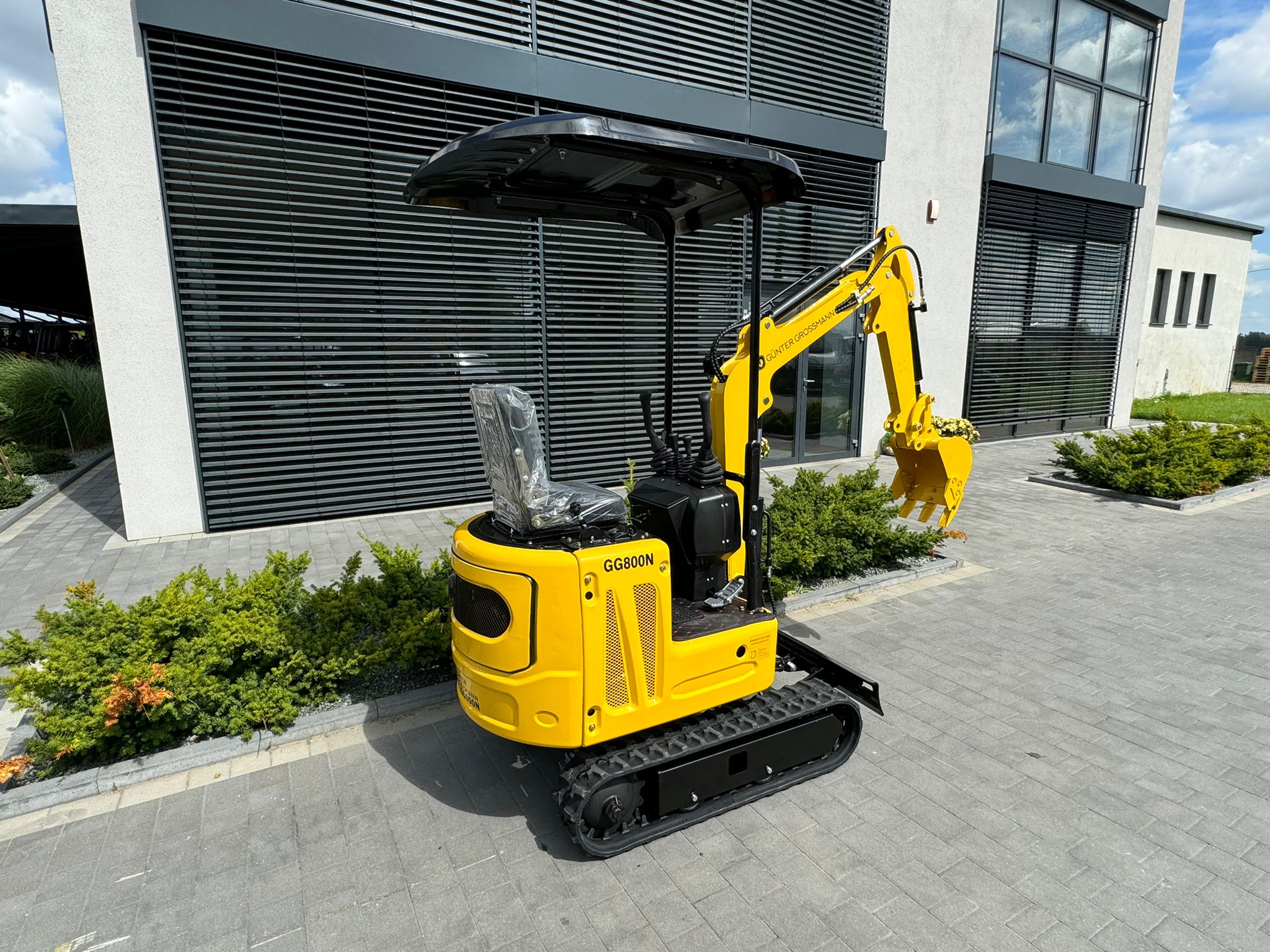

Mini Excavator
GG 800N
Crawler Excavator
The GG800N excavator, with an operating weight of 850 kg, is a machine that combines high performance with fuel efficiency. It is designed to meet the demands of intensive fieldwork, offering reliability and productivity.
Euro 5 Engine – Power and Ecology
Powered by a Gunter Grossmann Euro 5 Diesel engine with 8.6 kW of power, the GG800N excavator not only delivers the necessary performance but also meets strict emission standards, ensuring environmental friendliness. With a Wanye hydraulic pump and 16 MPa pressure, the machine handles every challenge with ease.
Working Range – Precise Digging in Difficult Conditions
The GG800N offers a maximum digging depth of 1650 mm and a maximum digging height of 2610 mm, enabling precise operations in various conditions. The dumping height of up to 1850 mm makes it ideal for loading materials even in hard-to-reach areas.
High Maneuverability and Flexibility
Thanks to a 360° swing radius, the GG800N provides exceptional maneuverability in tight spaces. A maximum digging radius on the ground of 2890 mm allows for convenient excavation across a wide area, even in confined locations. Additionally, the ability to raise the dozer blade by up to 345 mm increases the machine’s versatility in a variety of tasks.

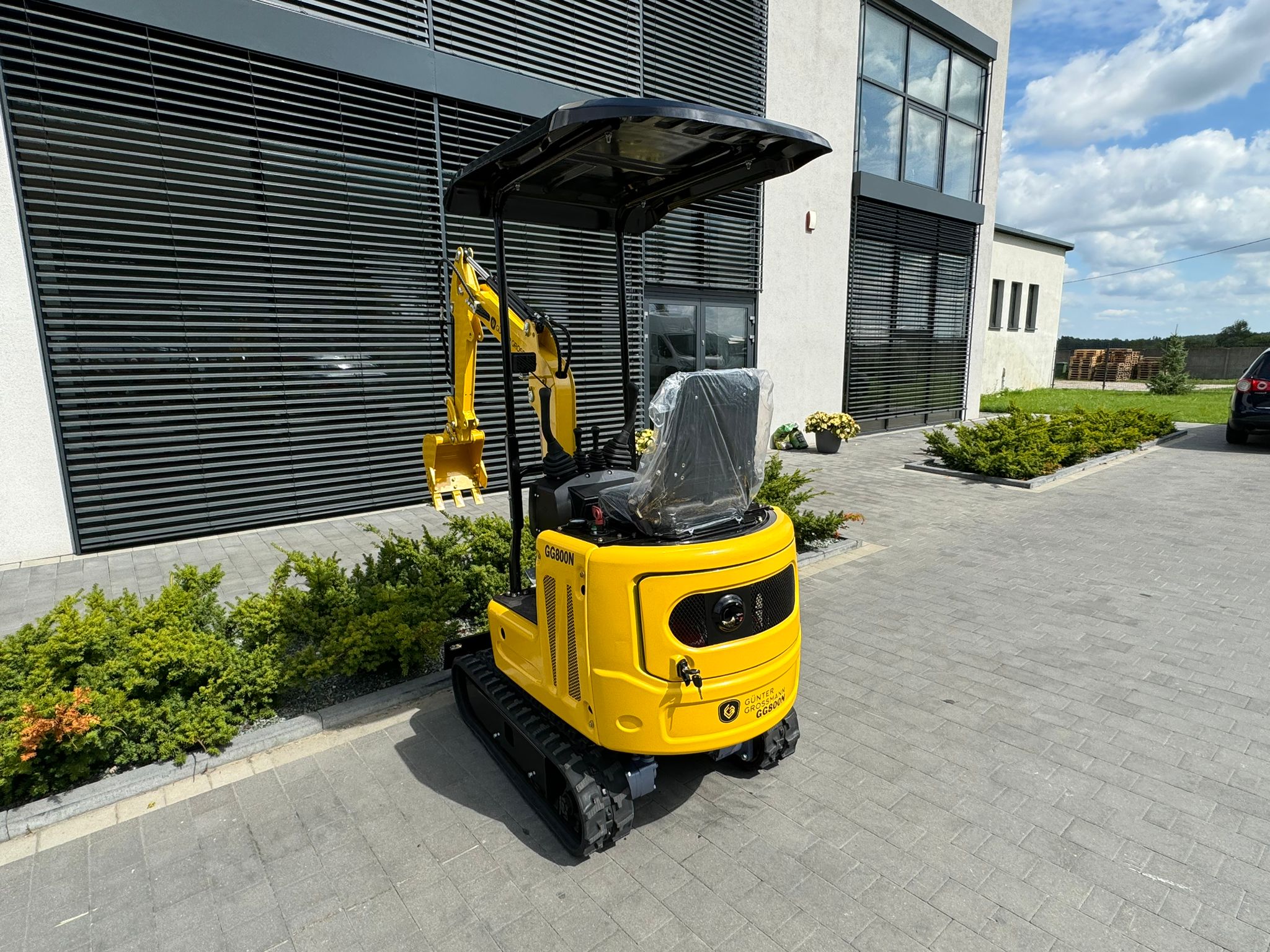

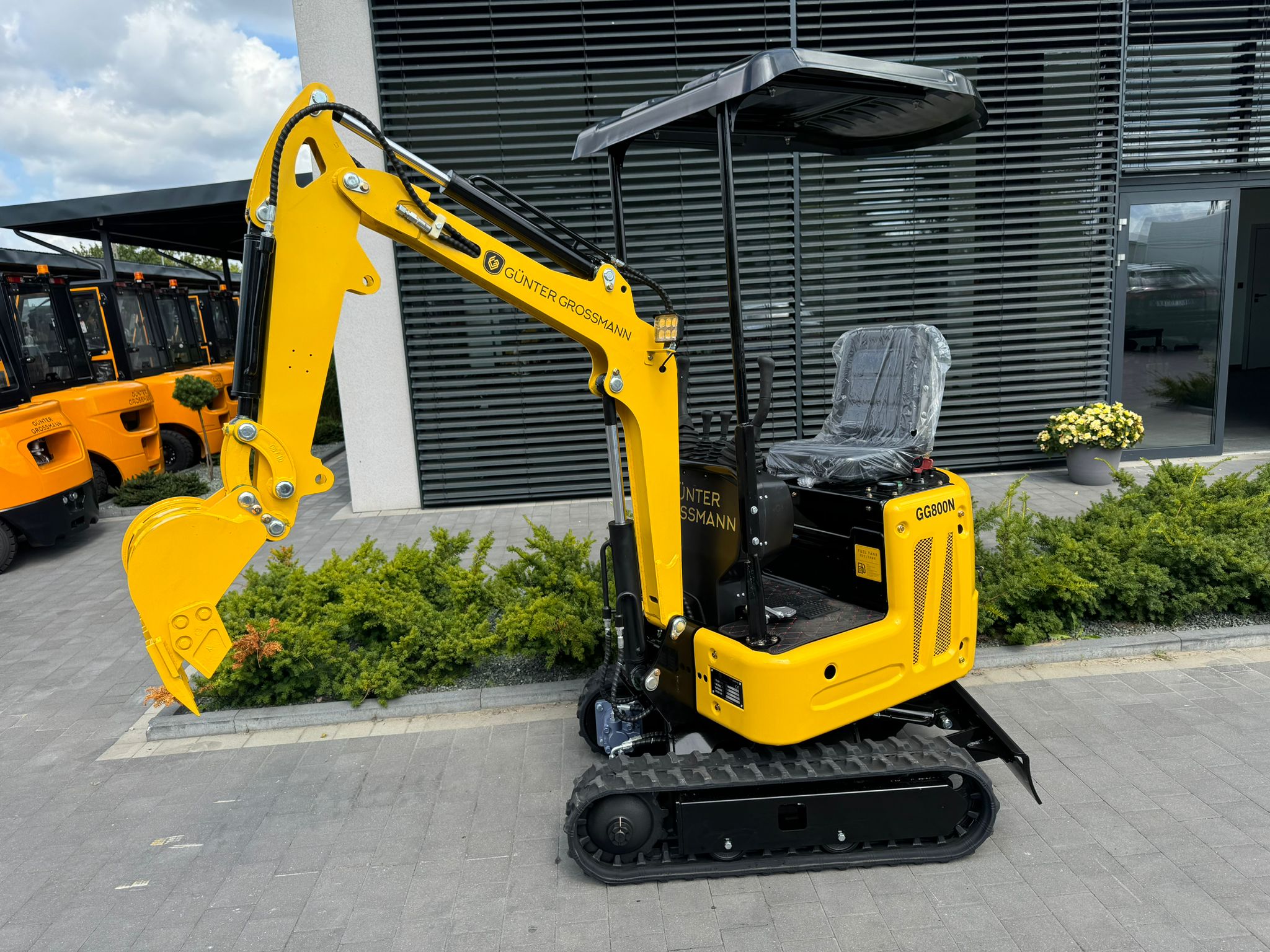

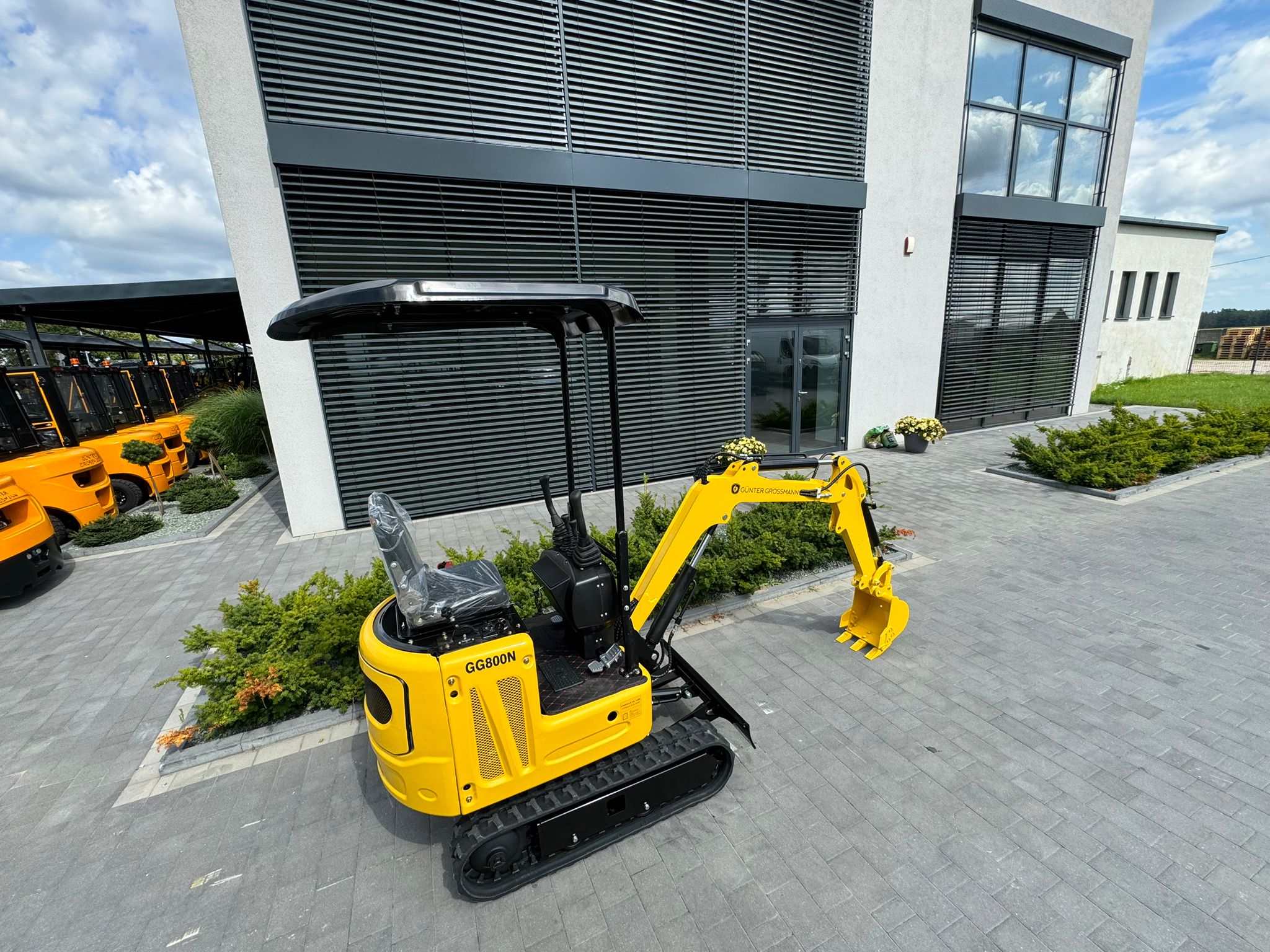

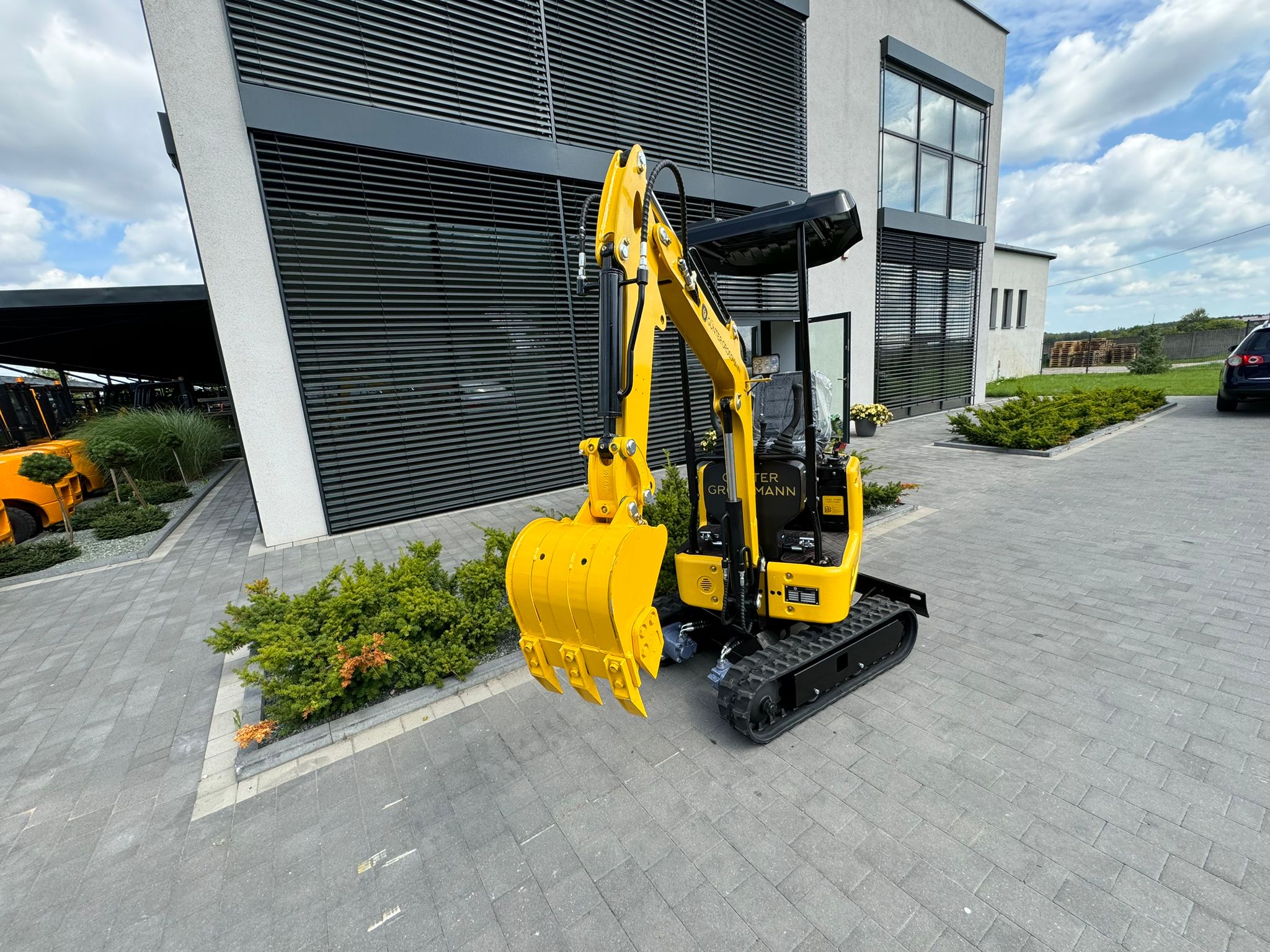

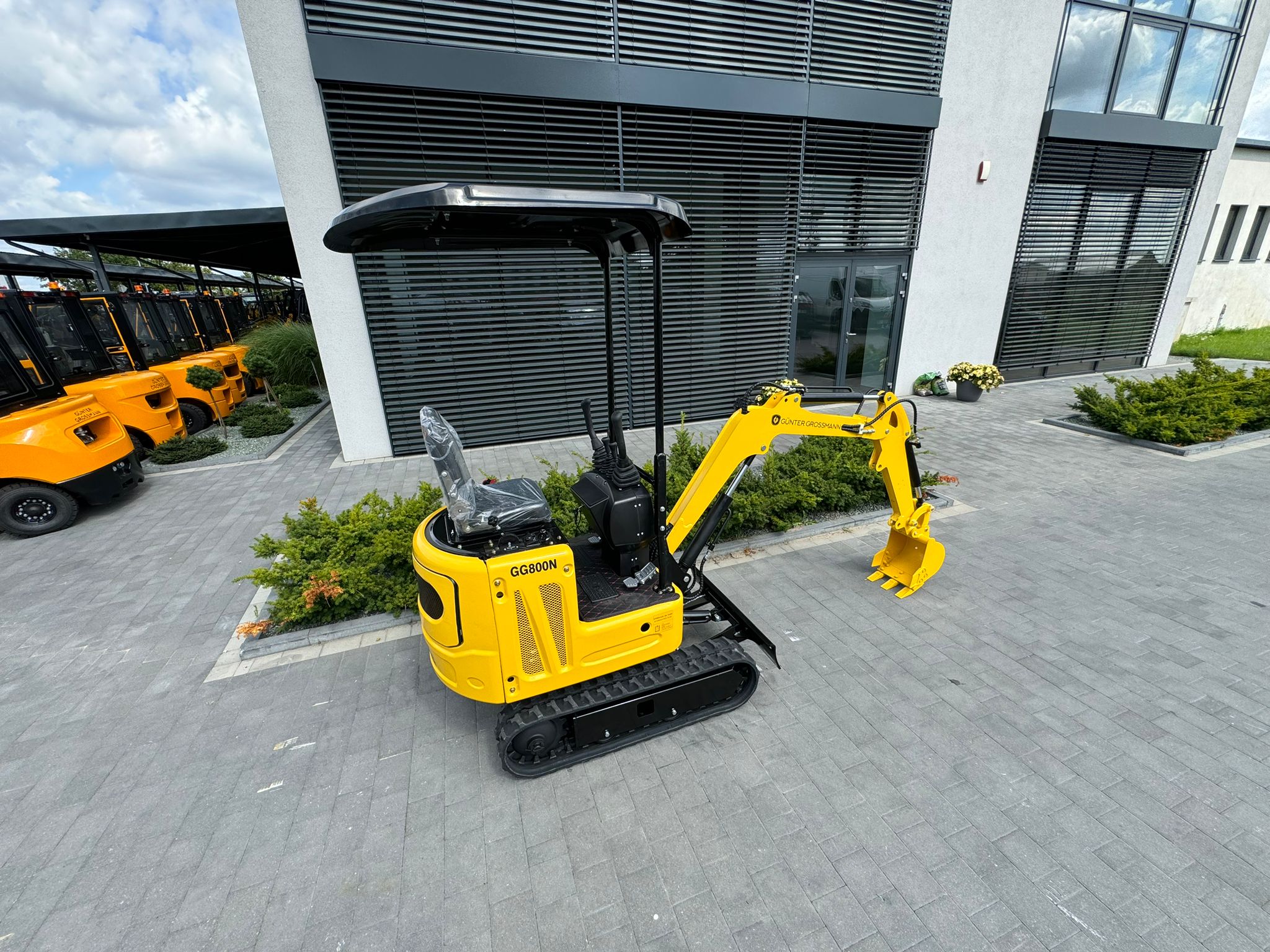

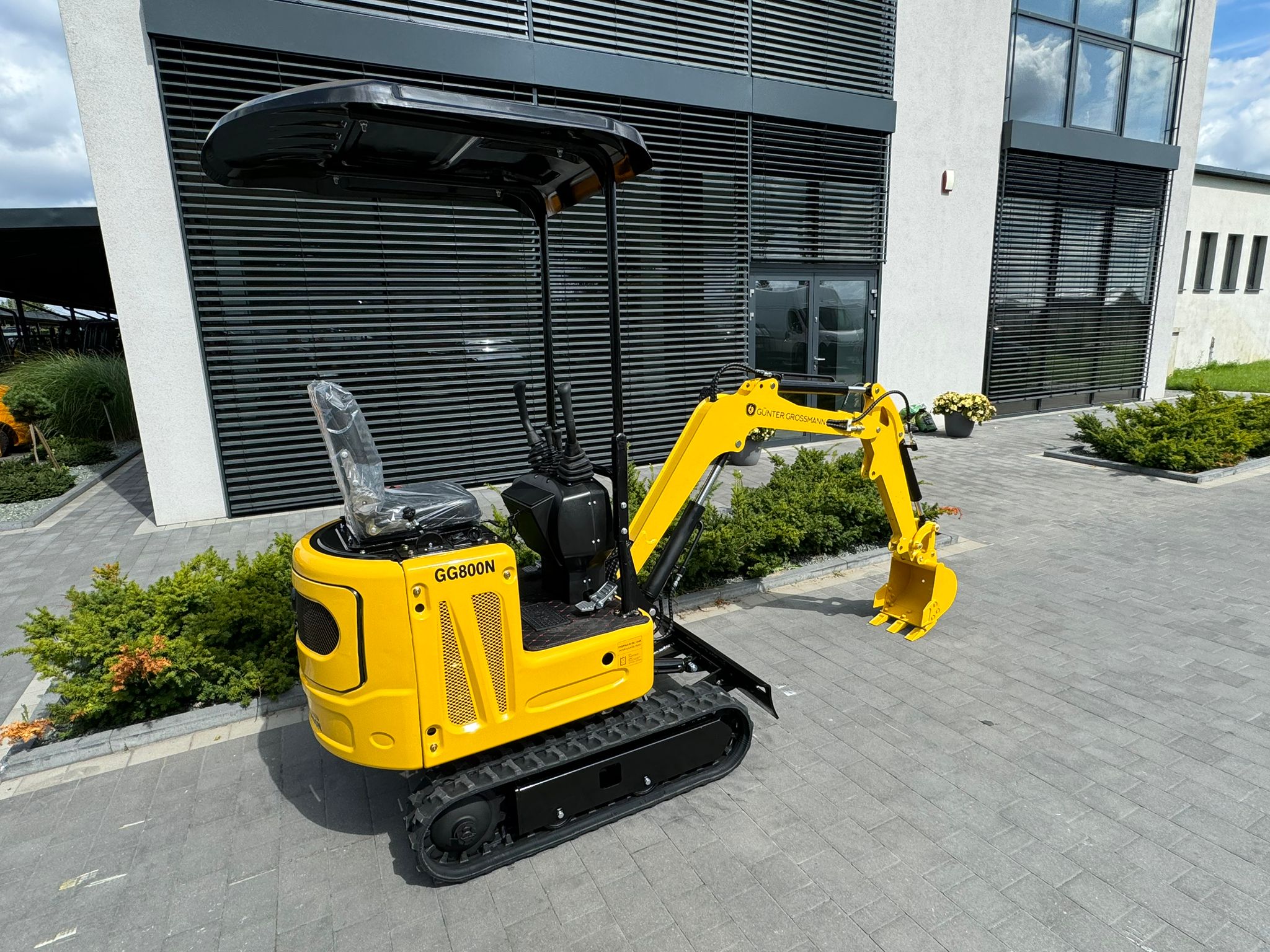

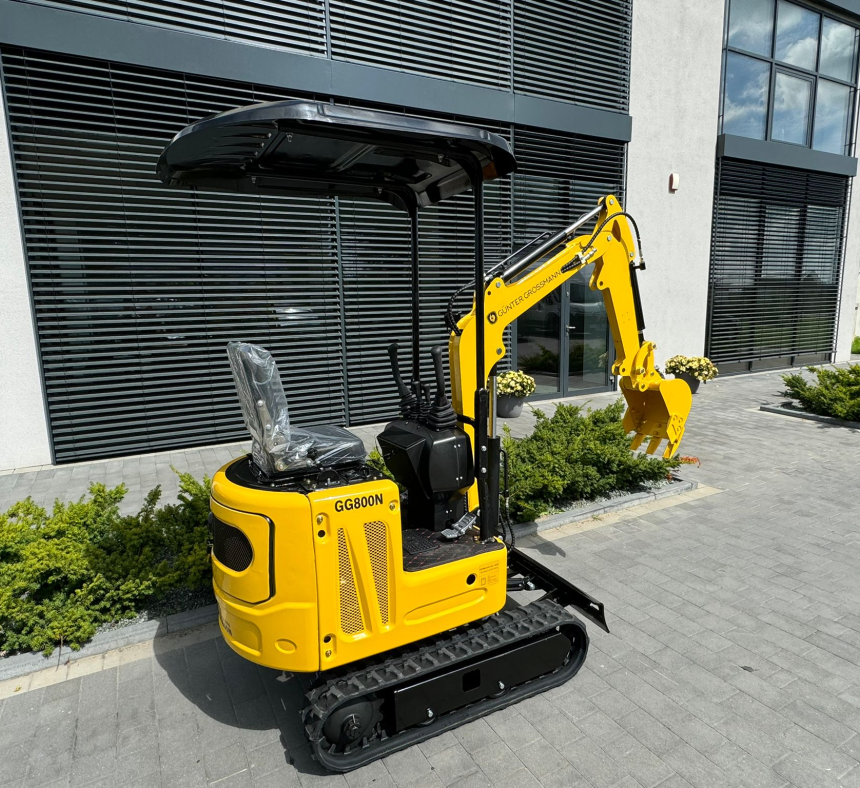

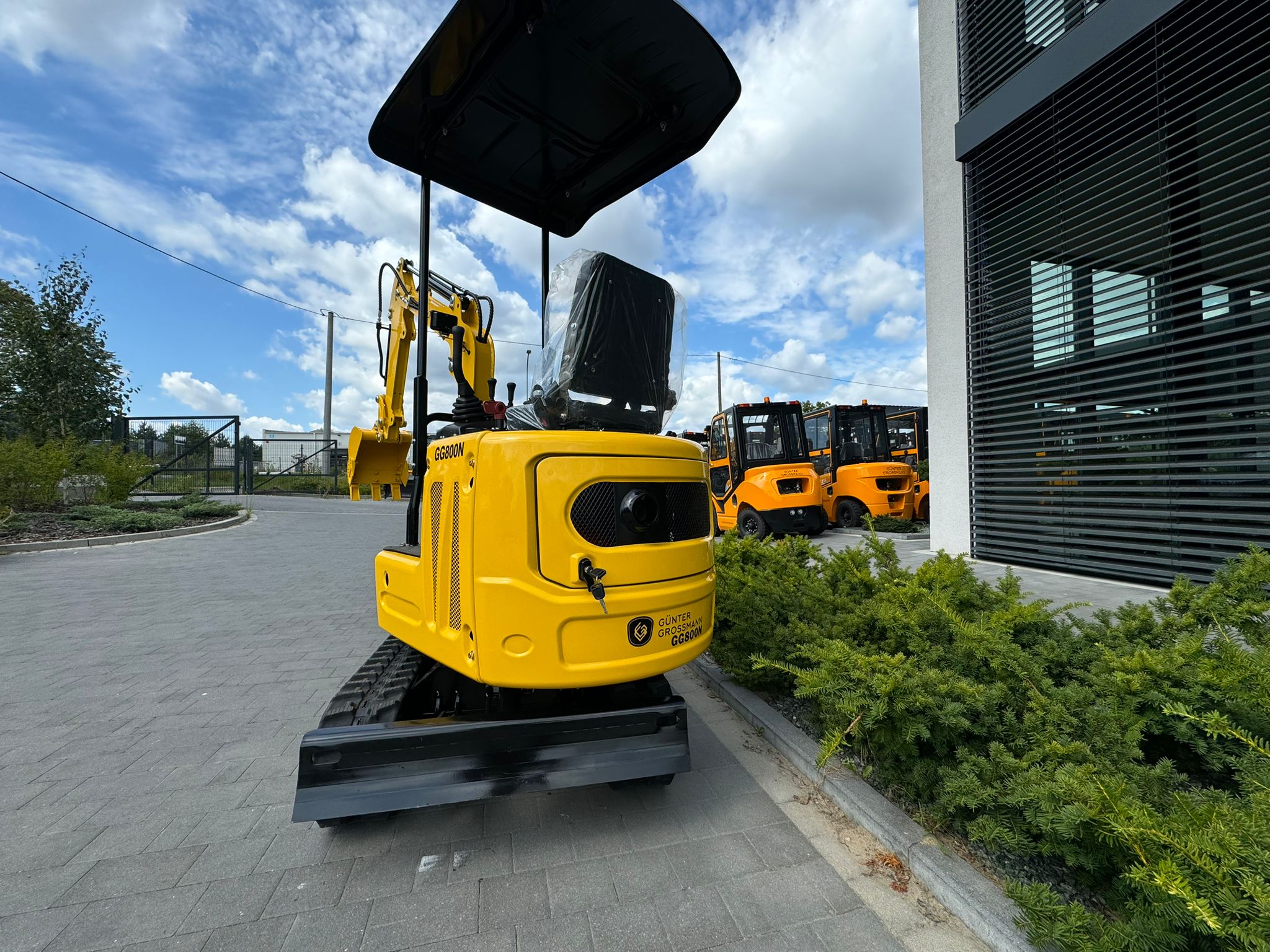

Gallery
