GT1150C

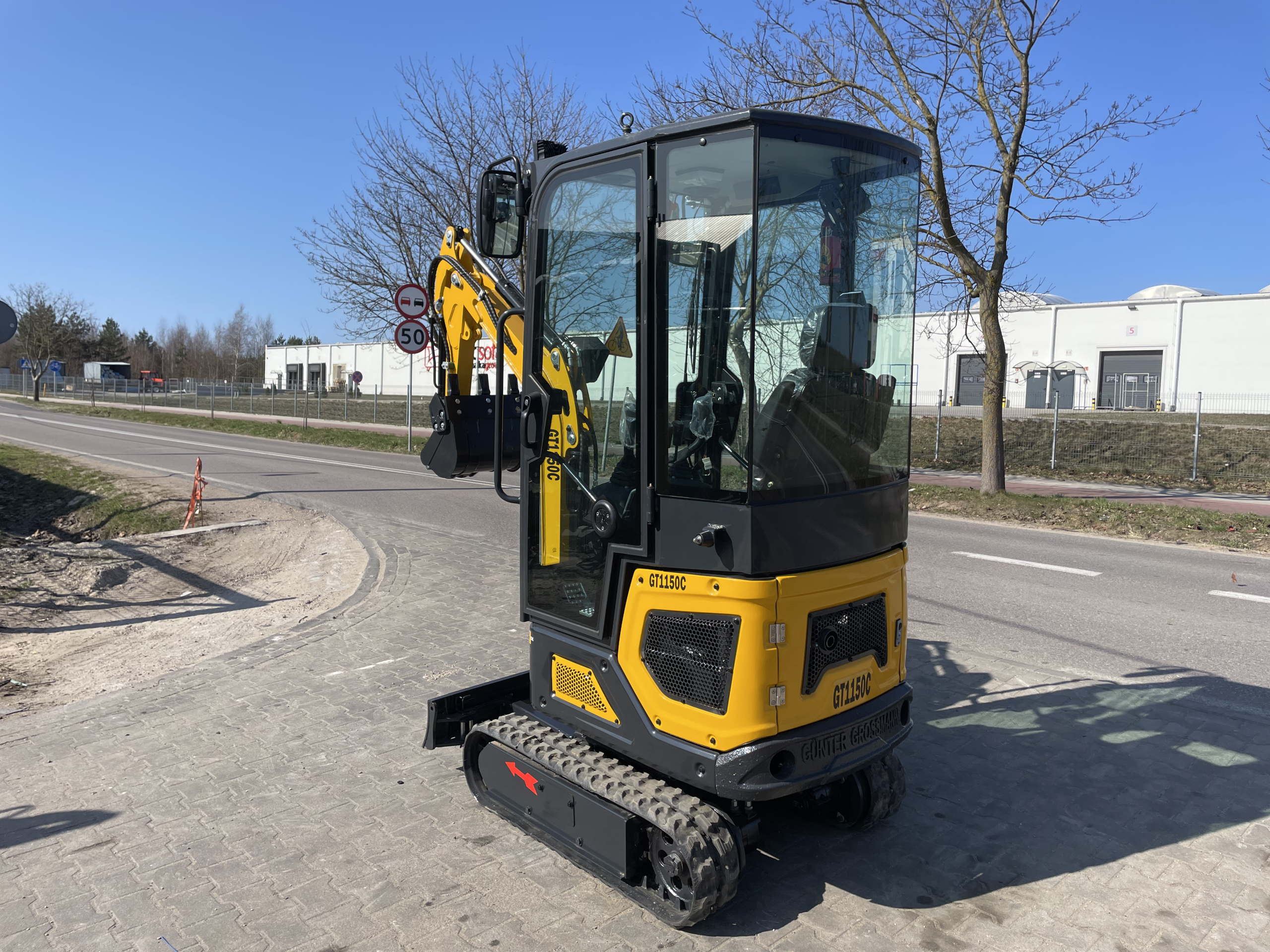

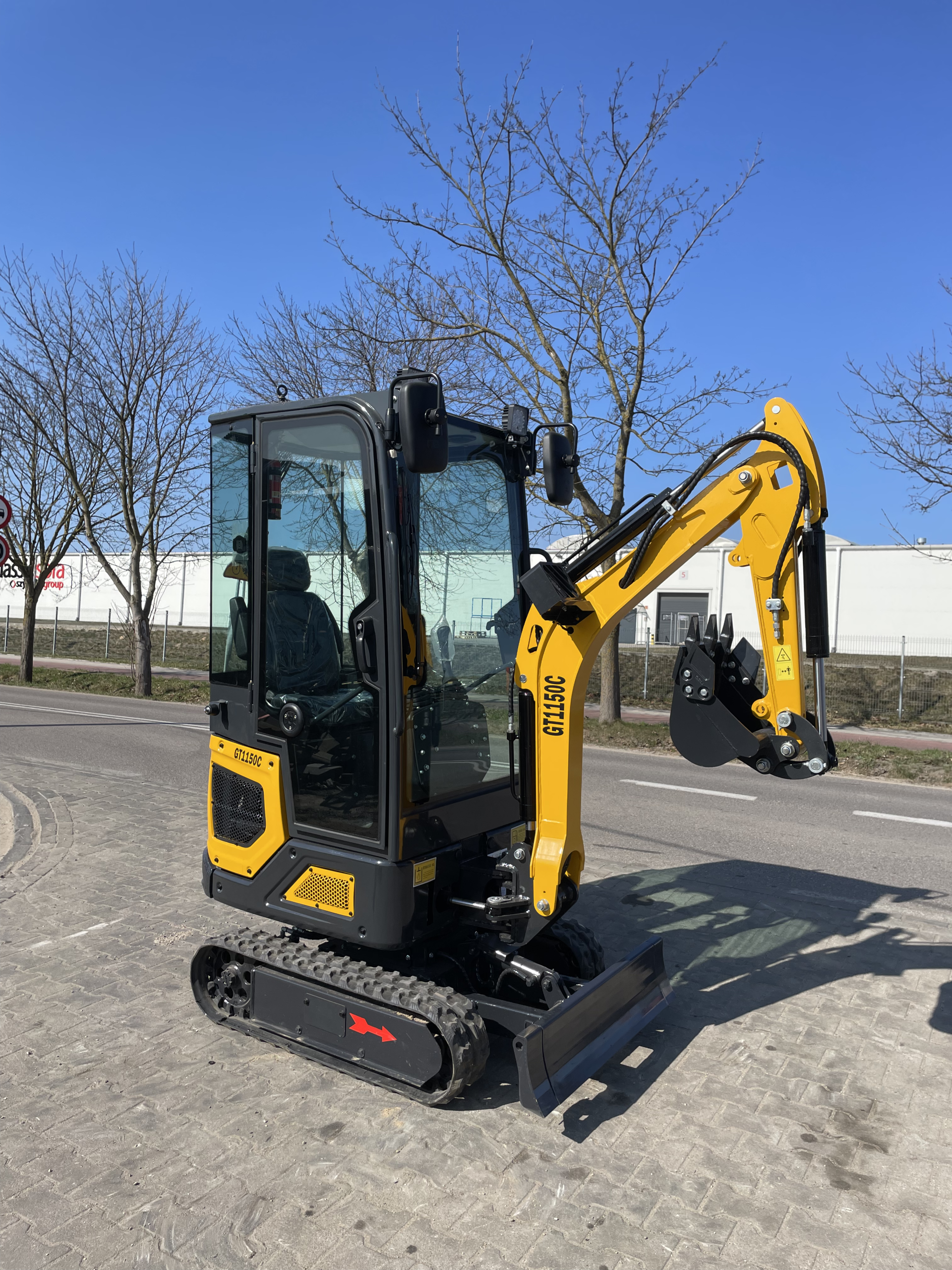

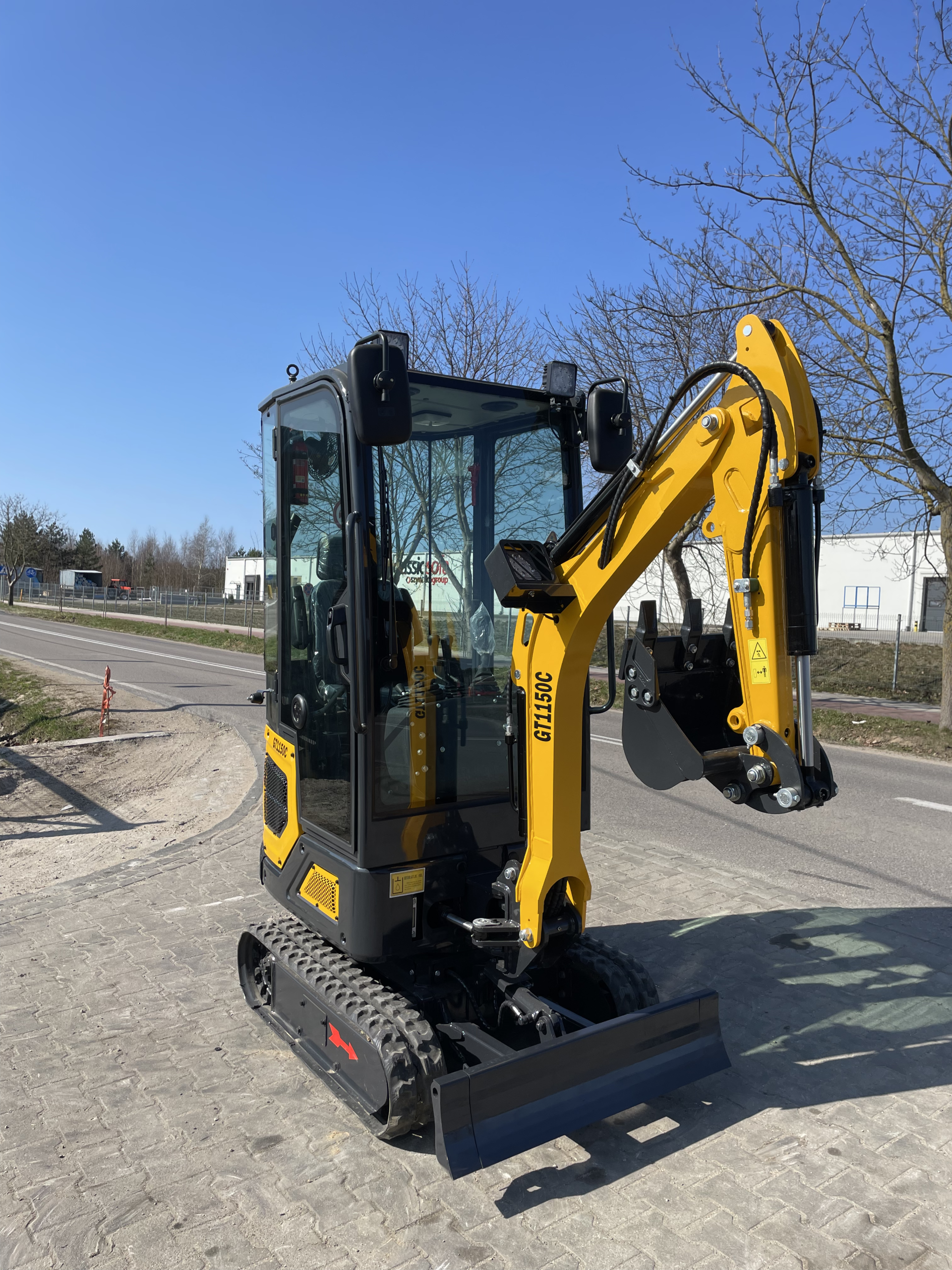

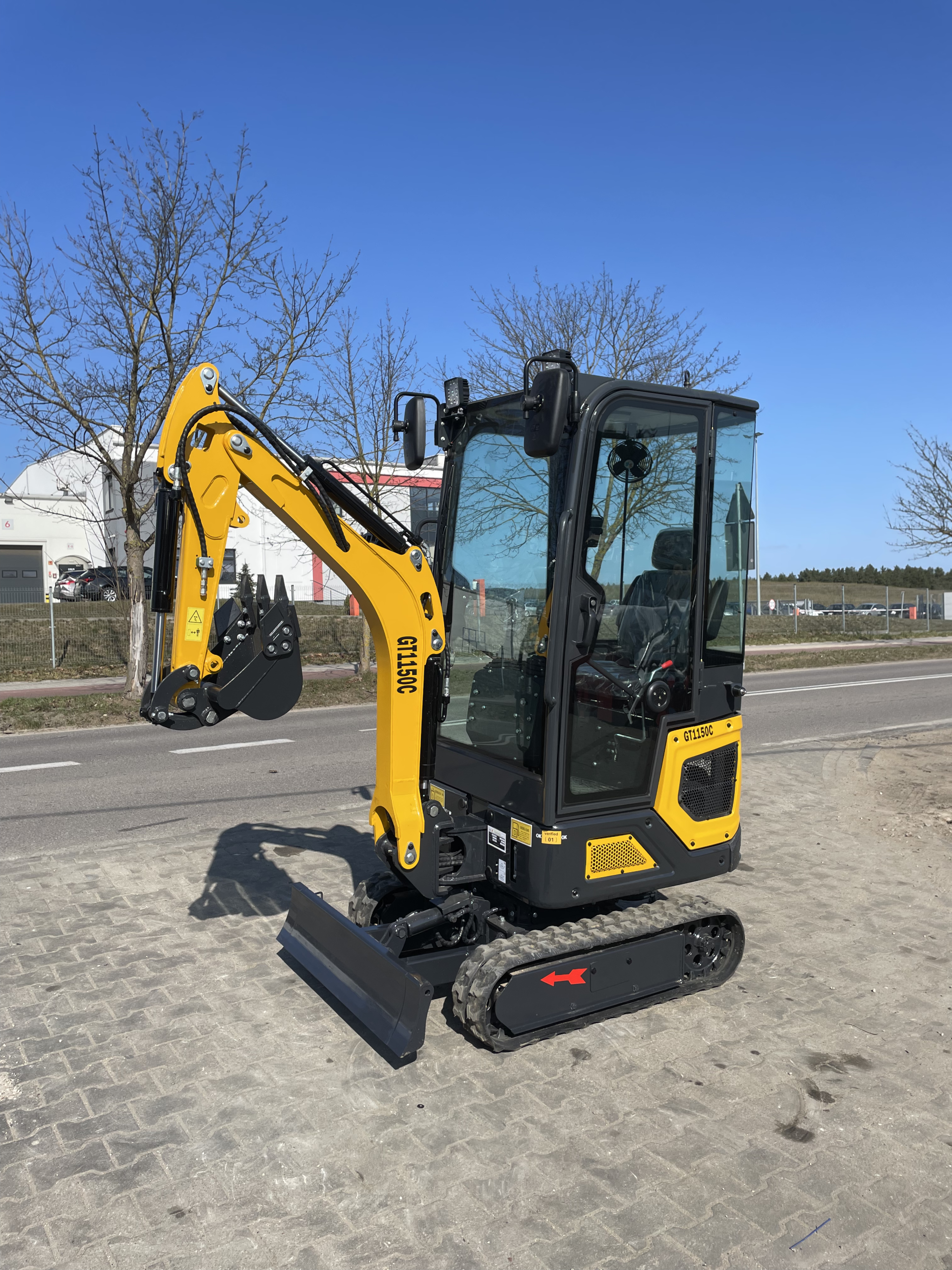

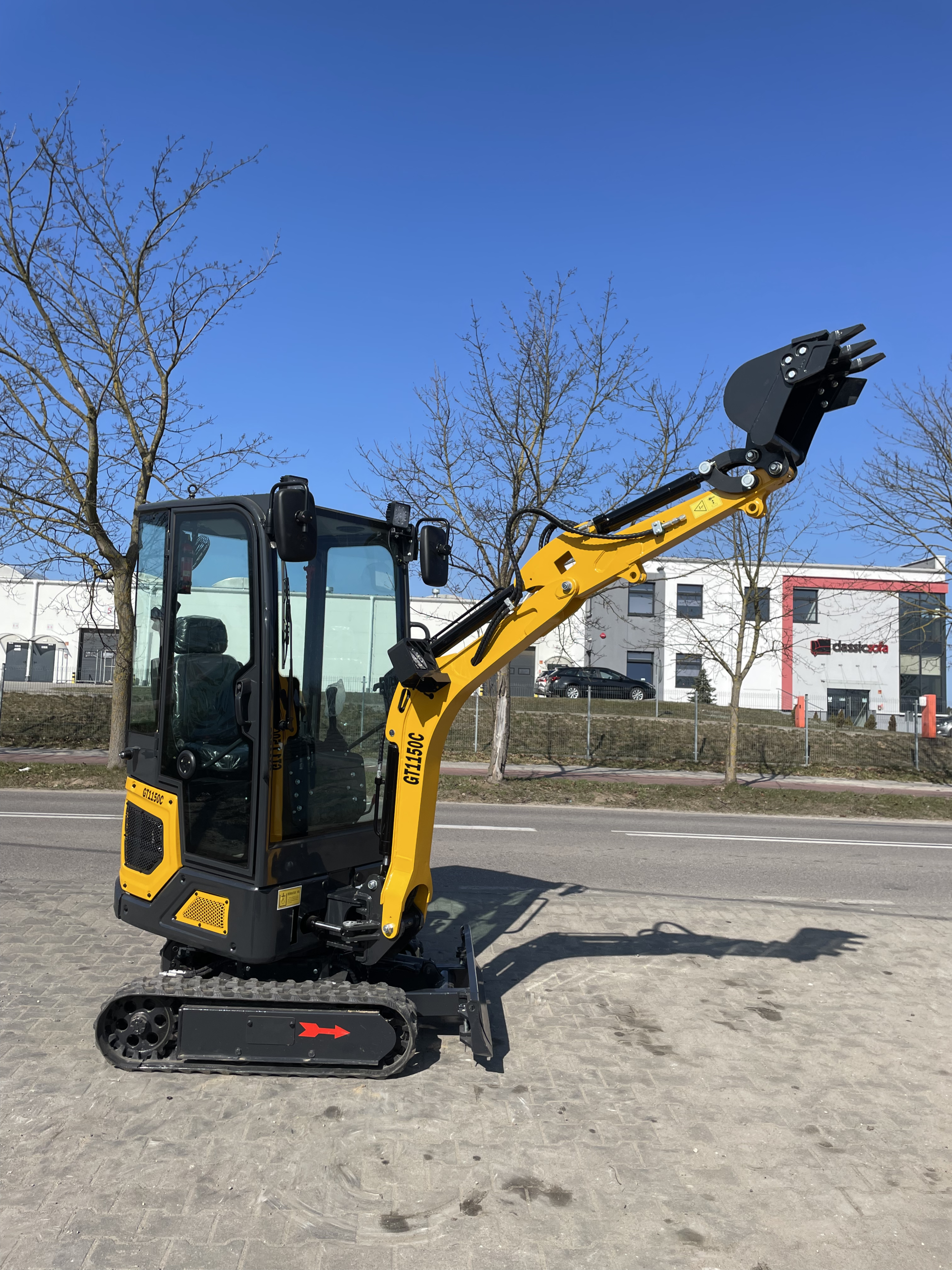

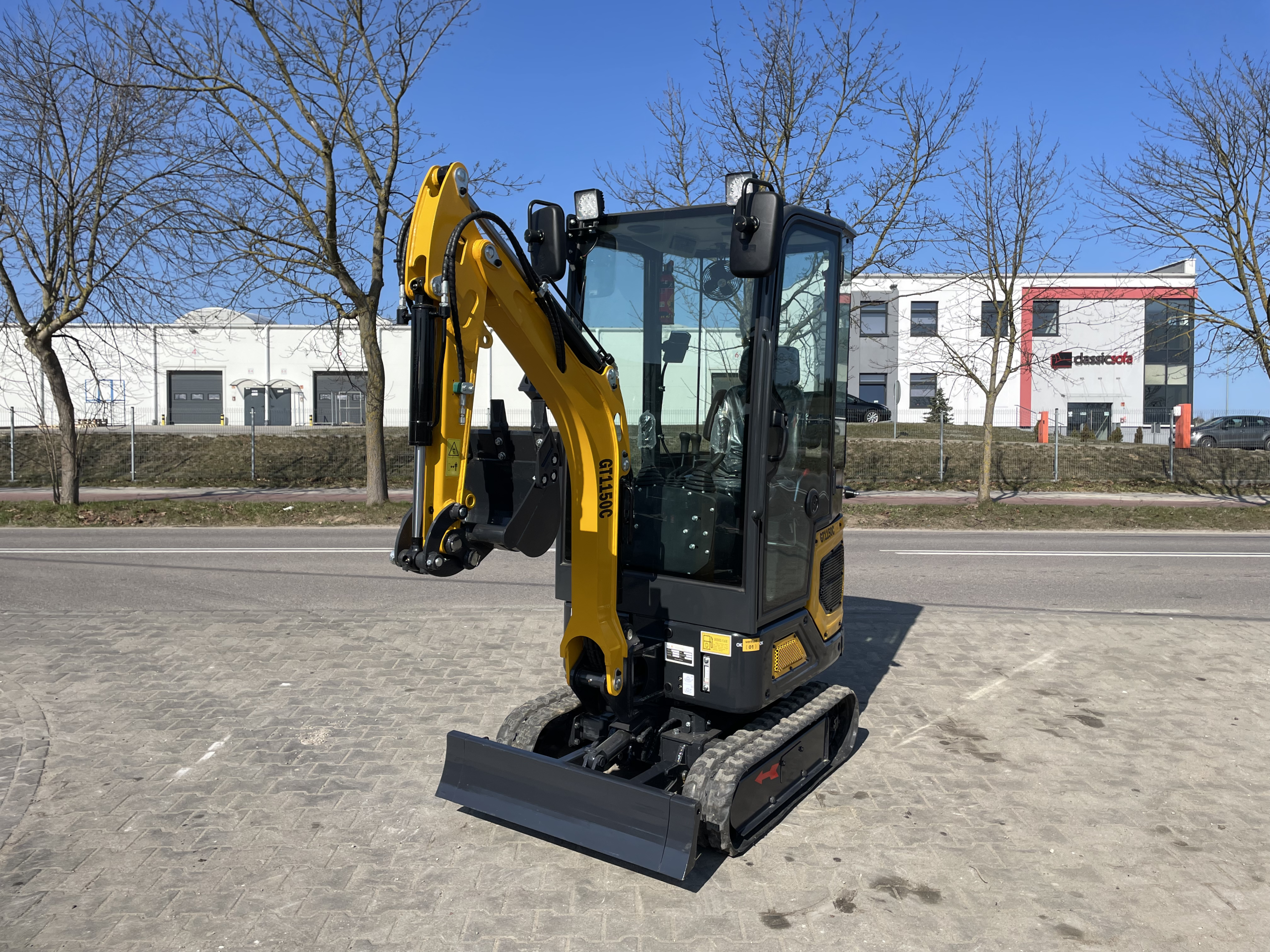

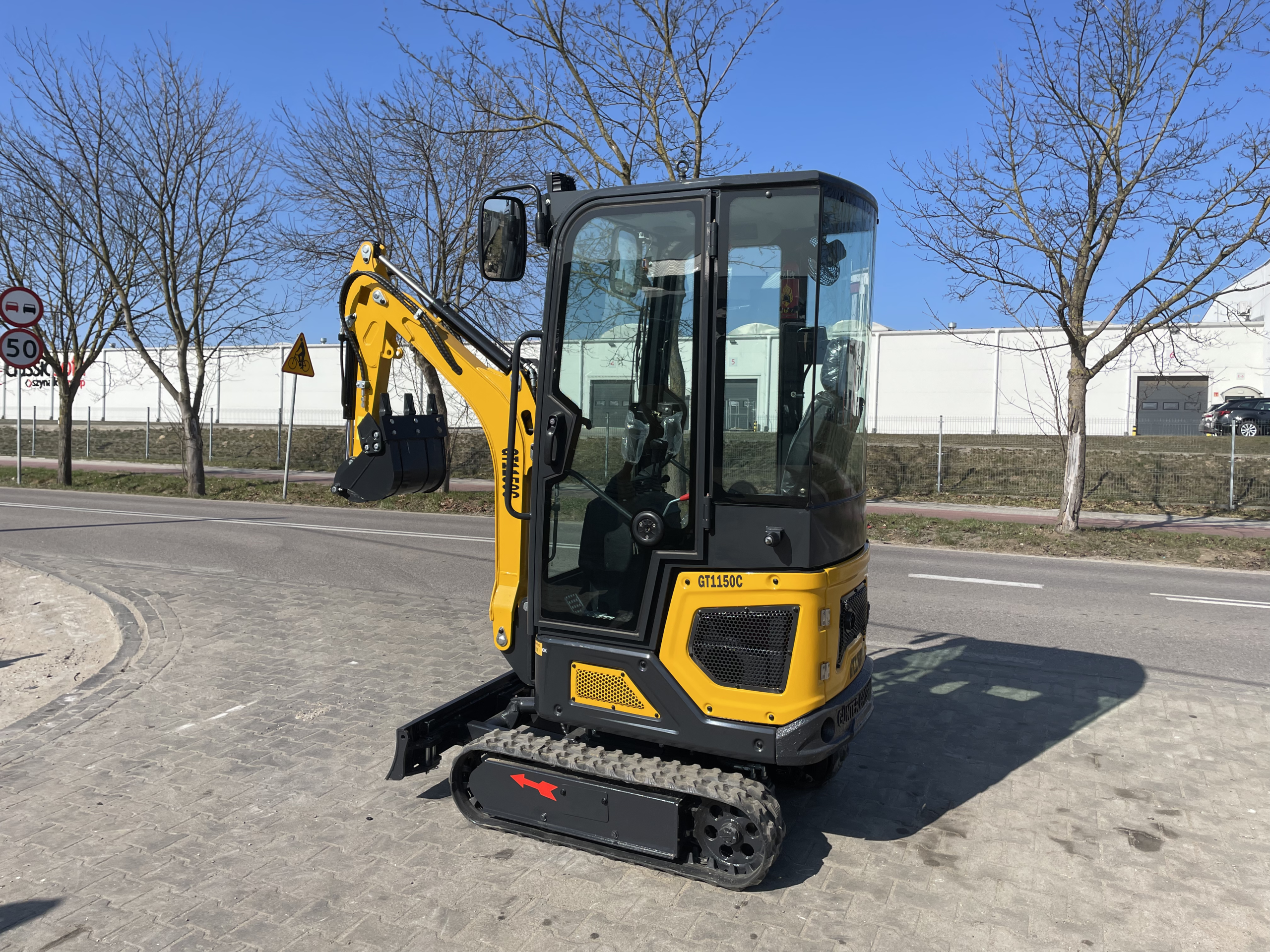

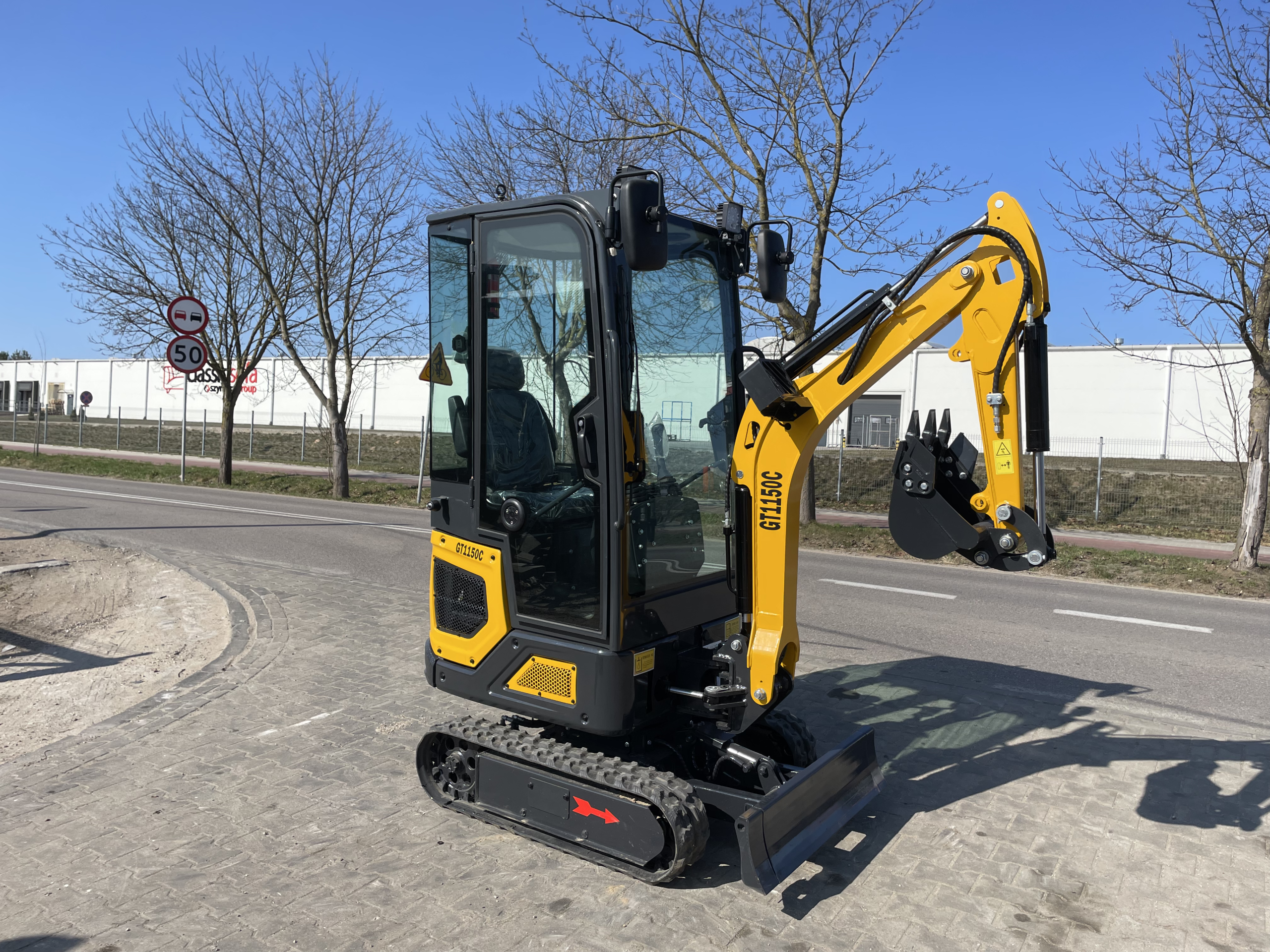

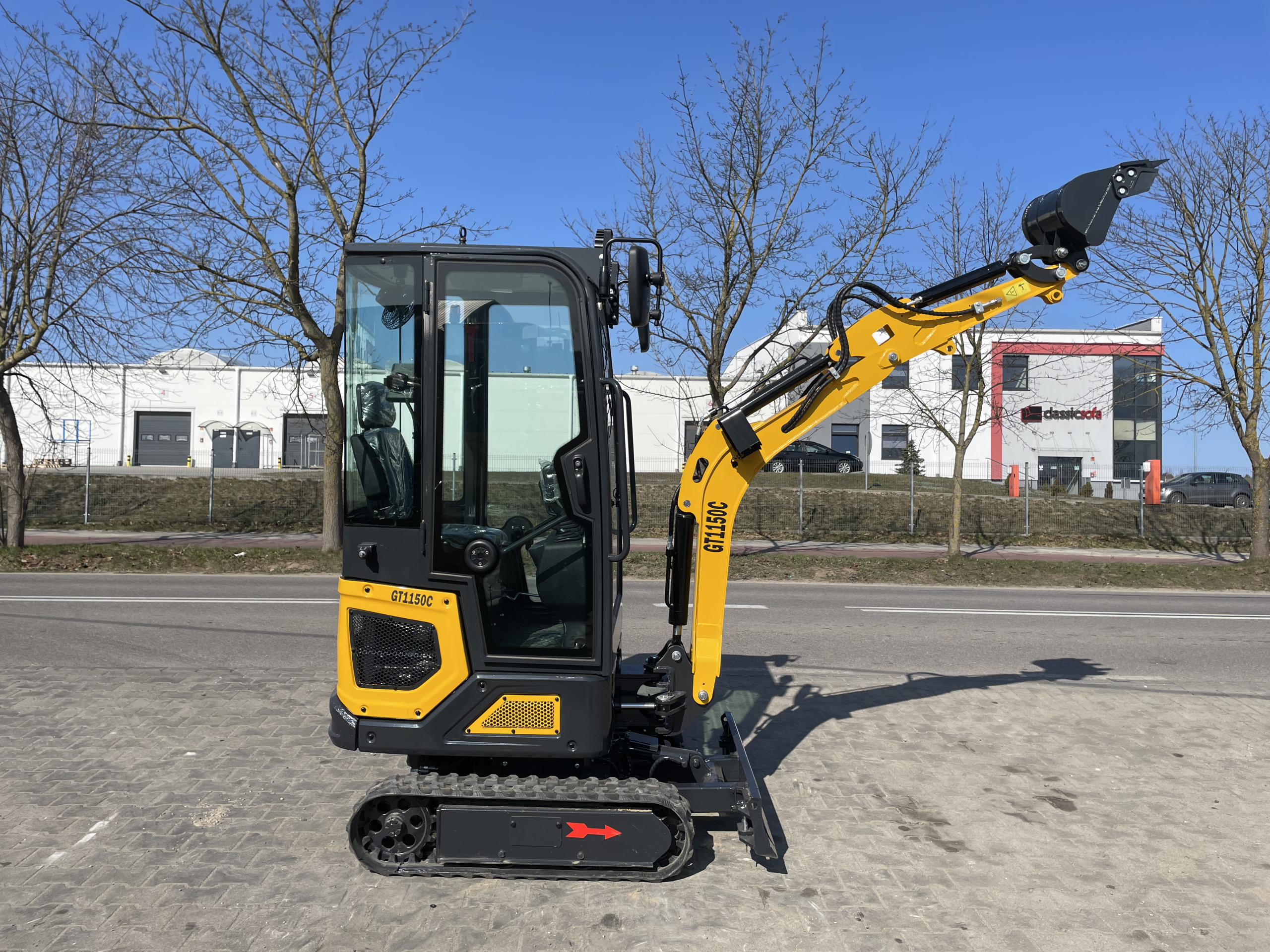

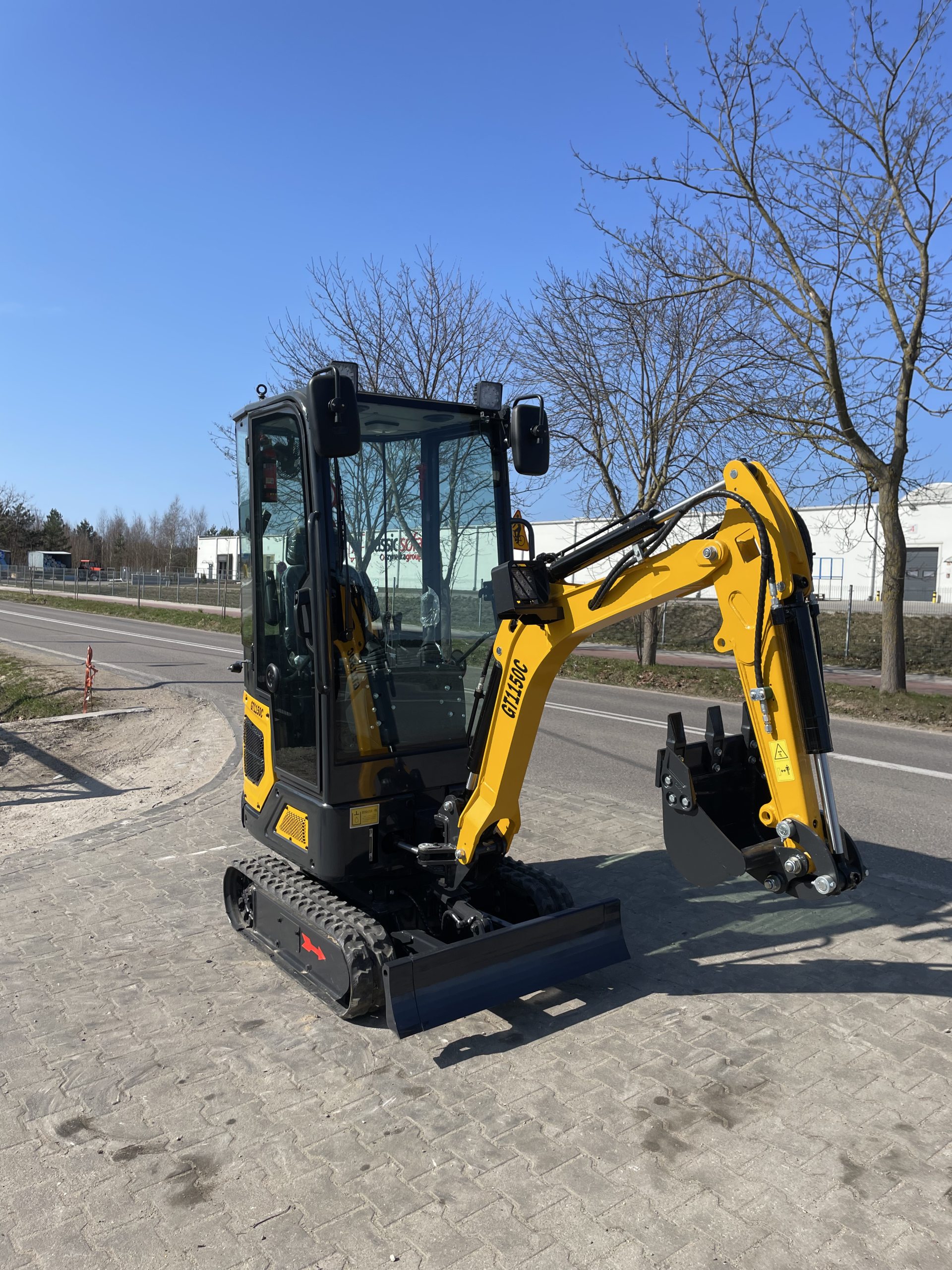

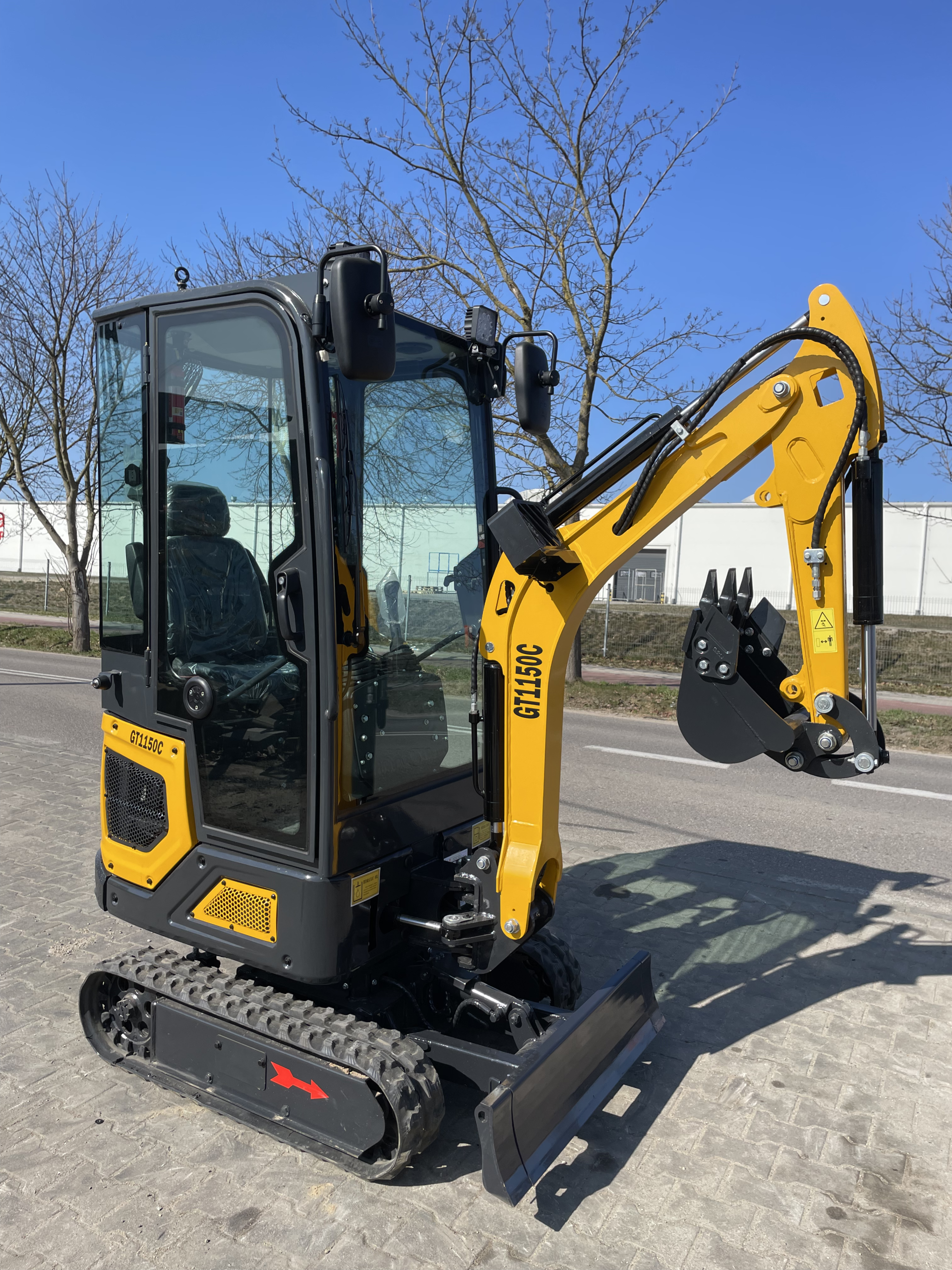

Mini Excavator GT1150C

Tracked Excavator – Compact and Versatile

The GT1150C mini excavator is a compact tracked machine with a weight of 1150 kg, designed for earthworks in areas with limited space. Thanks to its narrow overall width of 930 mm, it is ideal for private properties, gardens, narrow driveways, and urban environments. This model is suitable for excavation work for installations, foundations, fencing, and land leveling.

Koop 192F EURO 5 Engine

The machine is equipped with a Koop 192F diesel engine that meets the EURO 5 emission standard. The unit, with a rated power of 7 kW, provides stable and economical operation while maintaining low fuel consumption. The proven engine design ensures reliability and adequate power for standard work performed by a mini excavator of this class.

Precision and Operating Comfort

The GT1150C is equipped with ergonomic controls and expandable tracks, enabling smooth and precise operation of all working functions. The swing boom significantly facilitates digging work near walls, fences, and in hard-to-reach areas, increasing the machine’s functionality.

Working Parameters

The standard bucket capacity is 0.02 m³, allowing efficient performance of typical earthworks. The maximum digging depth is 1680 mm, and the maximum digging radius at ground level is 2430 mm. The machine reaches a maximum digging height of 2490 mm and a dumping height of 1760 mm. The minimum swing radius is 1190 mm, enabling efficient operation in confined spaces.

Stability and Compact Dimensions

The total machine length is 2650 mm, width 930 mm, and height 2200 mm. The undercarriage width is 950 mm, and the track width is 180 mm, ensuring adequate stability during operation. The total track length is 1100 mm, and the platform ground clearance is 380 mm, which helps when moving over uneven terrain. The dozer blade offers a maximum lifting height of 175 mm and a maximum digging depth of 325 mm, increasing machine stability during excavation work.
