Loaders
GG09 SO
Total weight
2250 kg
Engine
Kubota V1505 EURO5
Length
4210 mm
Height
960 mm
Load capacity
900 kg
Bucket capacity
0.26 m³
Width
1350 mm
Dump height
2029 mm
Base price excl. VAT
18.550,00 €
Additional equipment
0,00 €
Total price
excl. VAT and shipping costs
excl. VAT and shipping costs
18.550,00 €
Additional equipment
Check out the offer
Technical Data
Specification
Engine model:
Kubota V1505 EURO5
Total weight:
2250 kg
Load capacity:
900 kg
Steering system type:
Fully hydraulic
Working pressure:
16 MPa
Steering pump type:
External gear pump
Working brake:
Drum brake
Parking brake:
Drum brake
Hydraulic oil tank:
40 l
Hydraulic oil flow rate:
35 L/min
Working Range
Nominal bucket capacity:
0.26 m³
Loading height (primary):
3053 mm
Dump height (maximum - first):
2147 mm
Loading height (secondary):
3620 mm
Dump height (maximum - second):
2714 mm
Maximum dumping height:
2029 mm
Maximum gradeability:
20%
Frame oscillation angle:
8°
Tire size:
29×12.5–15
Wheelbase (front-rear):
1550 mm (front), 1082 mm (rear)
Inner turning radius:
1424 mm
Outer turning radius (to tire):
2807 mm

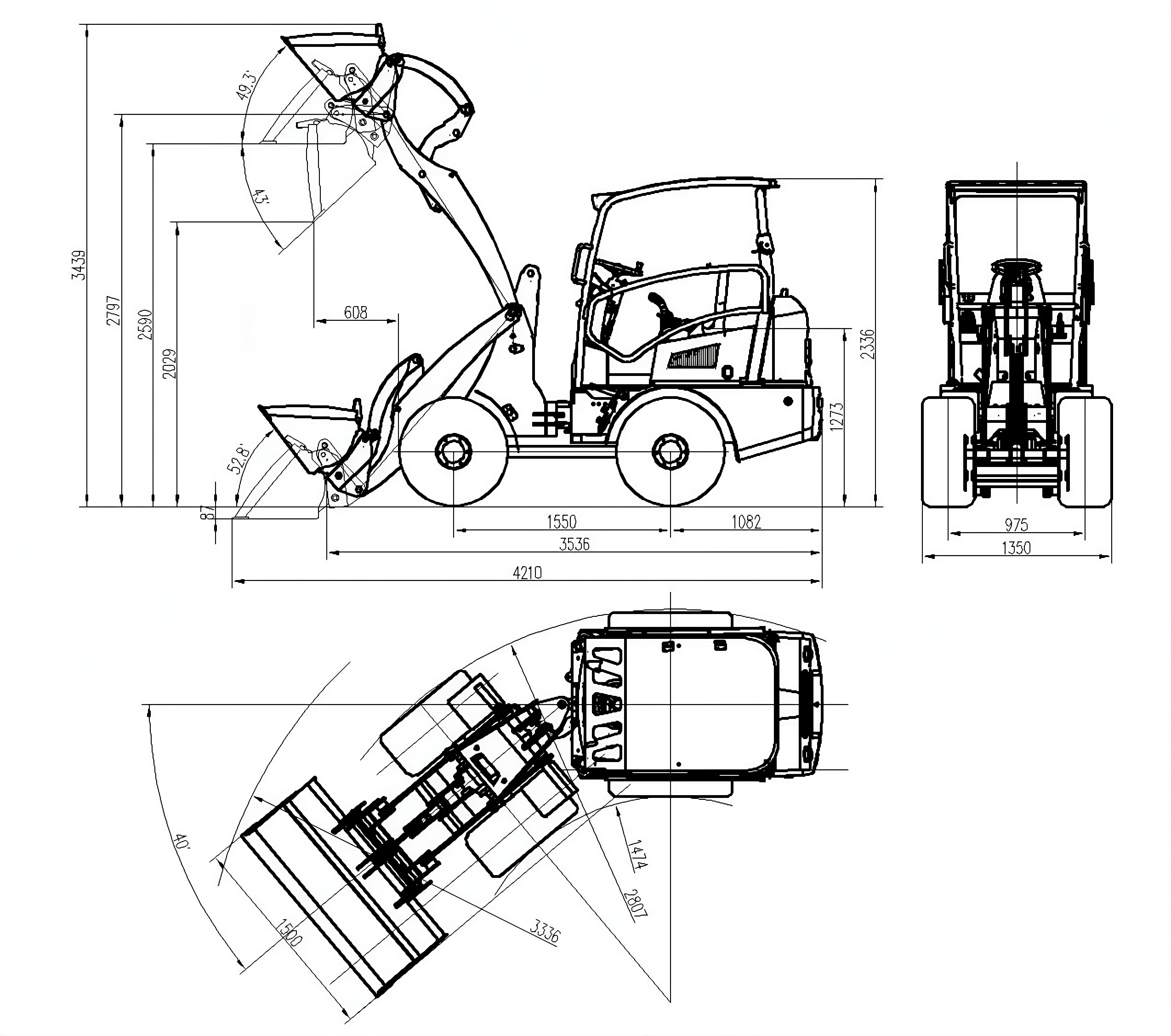

Dimensions
Length:
4210 mm
Width:
1350 mm
Height:
2346 mm
Bucket width (overall)
1200 mm
Wheelbase:
960 mm
Ground clearance:
270 mm
Additional equipment (for reference)
4-in-1 Bucket
Auger
Bale Grab
Grapple (Crocodile-type)
Mower

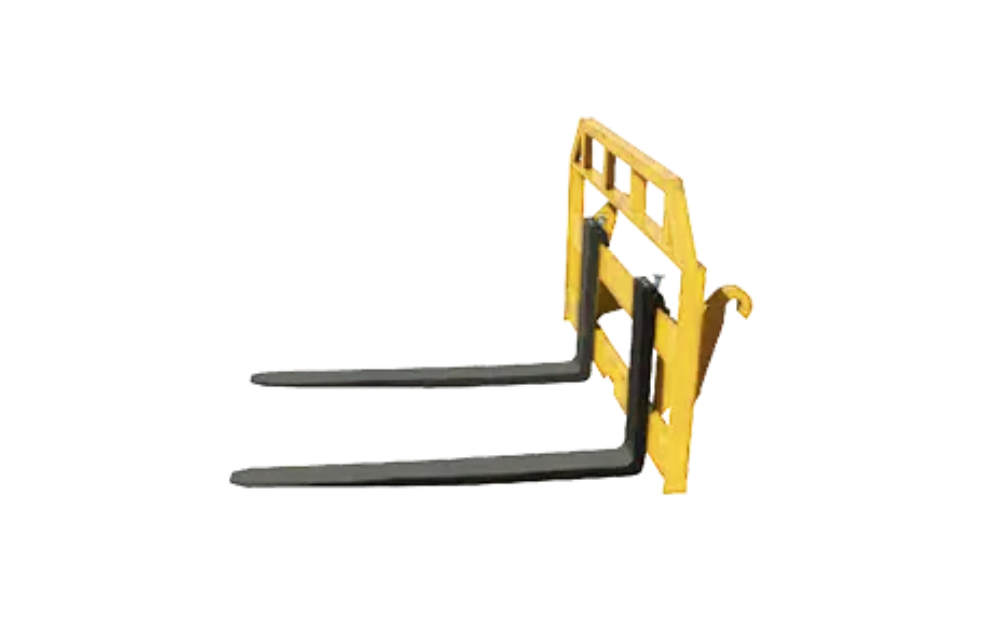

Pallet Forks

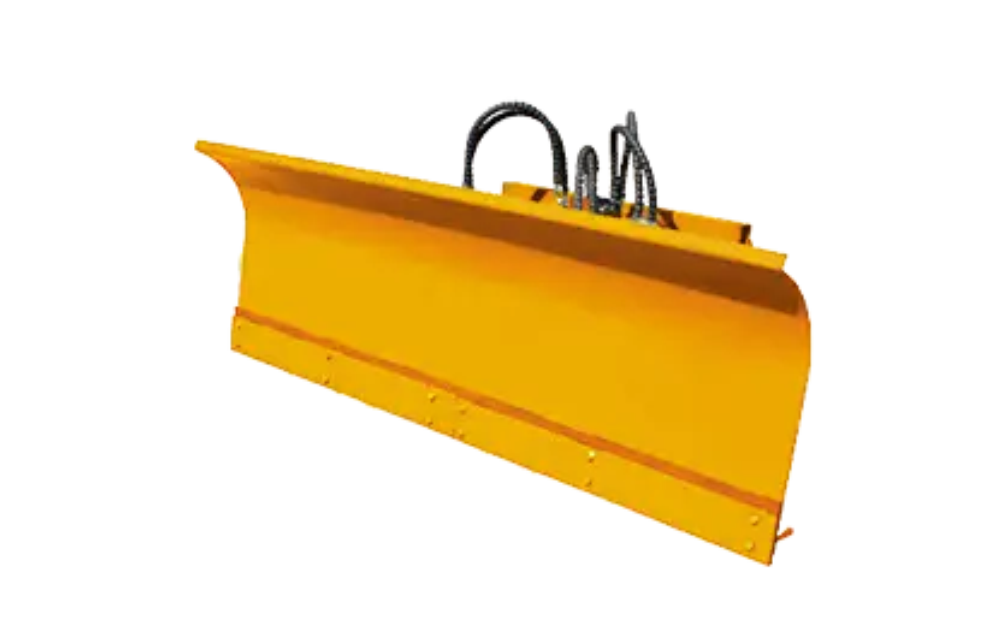

Snow Plow

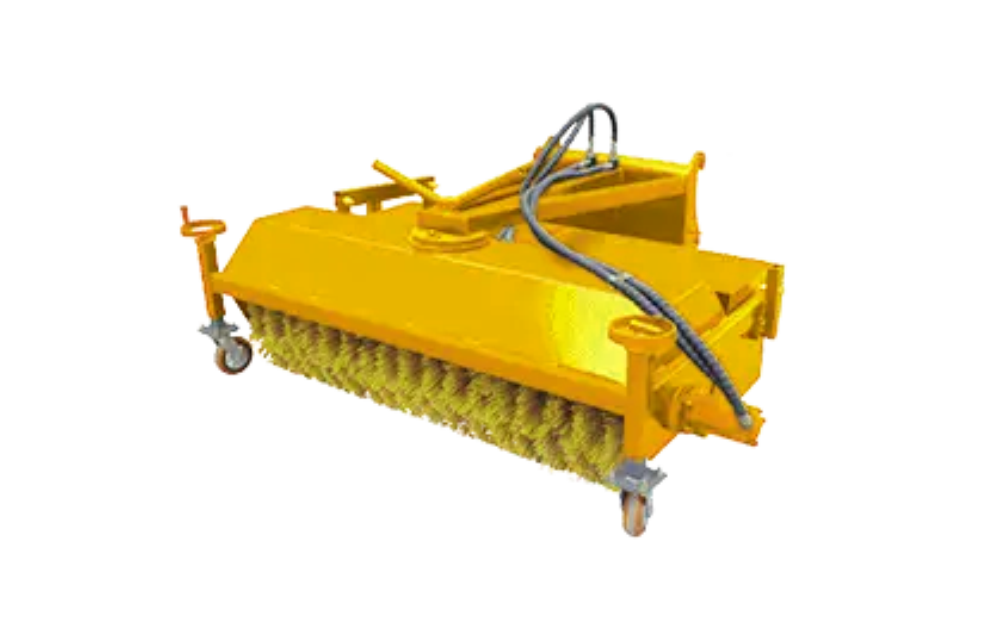

Sweeper
Bucket with grapple
Articulated Loader GG09 SO
Articulated loader
The GG09SO articulated loader is equipped with a modern, eco-friendly Kubota V1505 EURO5 engine, which ensures both power and low emissions. With a total machine weight of just 2,250 kg, it is highly maneuverable and easy to handle, even in tight construction sites.
Load Capacity and Operating Range — The Perfect Tool for Precision Tasks
The GG09SO offers an impressive load capacity of 900 kg, enabling efficient handling of various loading and transport tasks. The standard bucket capacity is 0.26 m³, allowing for quick movement of bulk and fine materials.
Steering System and Hydraulics — Full Control and Work Comfort
The GG09SO model features a fully hydraulic steering system, supported by an external gear pump with a working pressure of 16 MPa, providing precise control and smooth operation. A 40-liter hydraulic oil tank with a flow rate of 35 L/min ensures stable system performance even during prolonged use.
Dimensions and Maneuverability — Compact Size, Great Capability
Thanks to its compact dimensions (length: 4210 mm, width: 1350 mm, height: 2346 mm) and tight turning radius — inner: 1424 mm, outer: 2807 mm — the GG09SO loader excels in confined spaces. A ground clearance of 270 mm and a frame oscillation angle of 8° further enhance driving comfort and stability on uneven terrain.
Loading and Dump Height — Work Optimization
The GG09SO model offers a primary loading height of 3053 mm and a secondary loading height of 3620 mm, while the maximum dump height reaches 2029 mm. This allows the operator to work efficiently with a wide range of machines and containers.
