Excavators

JAPAN1000J

10.900 euro netto

Working weight
975 kg
Engine power
15 HP
Bucket capacity
0.025 cbm
Max. digging depth
1650 mm
Engine model
Kubota
Main pump
Parkier
Bucket width
380 mm
Max. digging height
2610 mm

Check out the offer

Narrow bucket 200 mm

Narrow bucket 200 mm

Grading bucket 500 mm

Grading bucket 500 mm

Grading bucket 800 mm

Grading bucket 800 mm

Auger

Auger

Ripper tooth

Ripper tooth

Grapple

Grapple

Hammer

Hammer

Rake

Rake

Quick coupler

Quick coupler

Looking for other attachments?Contact us – we will prepare an individual offer.
CONTACT US›
Selected: 0

Technical Data

Specification

+

Weight:

975 kg

Bucket Capacity:

0.025 cbm

Engine:

Japanese Kubota

Power:

15 HP

Main Pump:

Parkier

Travel Motor:

LKC

Travel Speed:

Eaton

Moving Arm:

Yes

Joystick:

Yes

Drive:

Two speeds

Drive Motors:

Concealed

Hoses in the Arm:

Cylinders protected against mechanical damage

Pressure:

20 MPA

Oil Flow:

18 L/min

Work Range

+

Max. Digging Depth:

1650 mm

Max. Digging Height:

2610 mm

Max. Digging Radius on the Ground:

2890 mm

Rotation Radius:

360°

Max. Blade Height:

345 mm

Max. Blade Digging Depth:

255 mm

Main Dimensions

+

Length:

2770 mm

Width:

896 mm

Height:

2100 mm

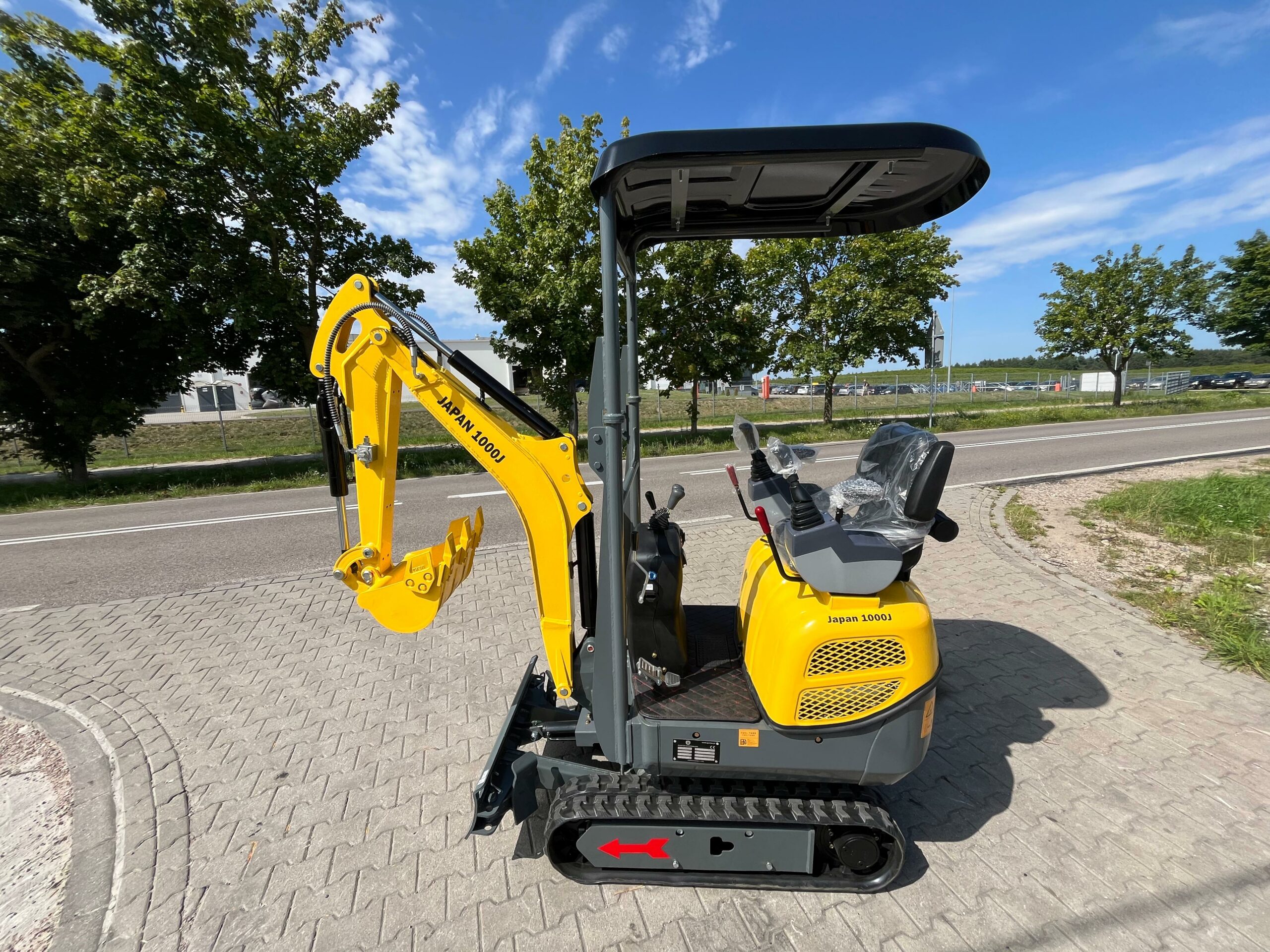

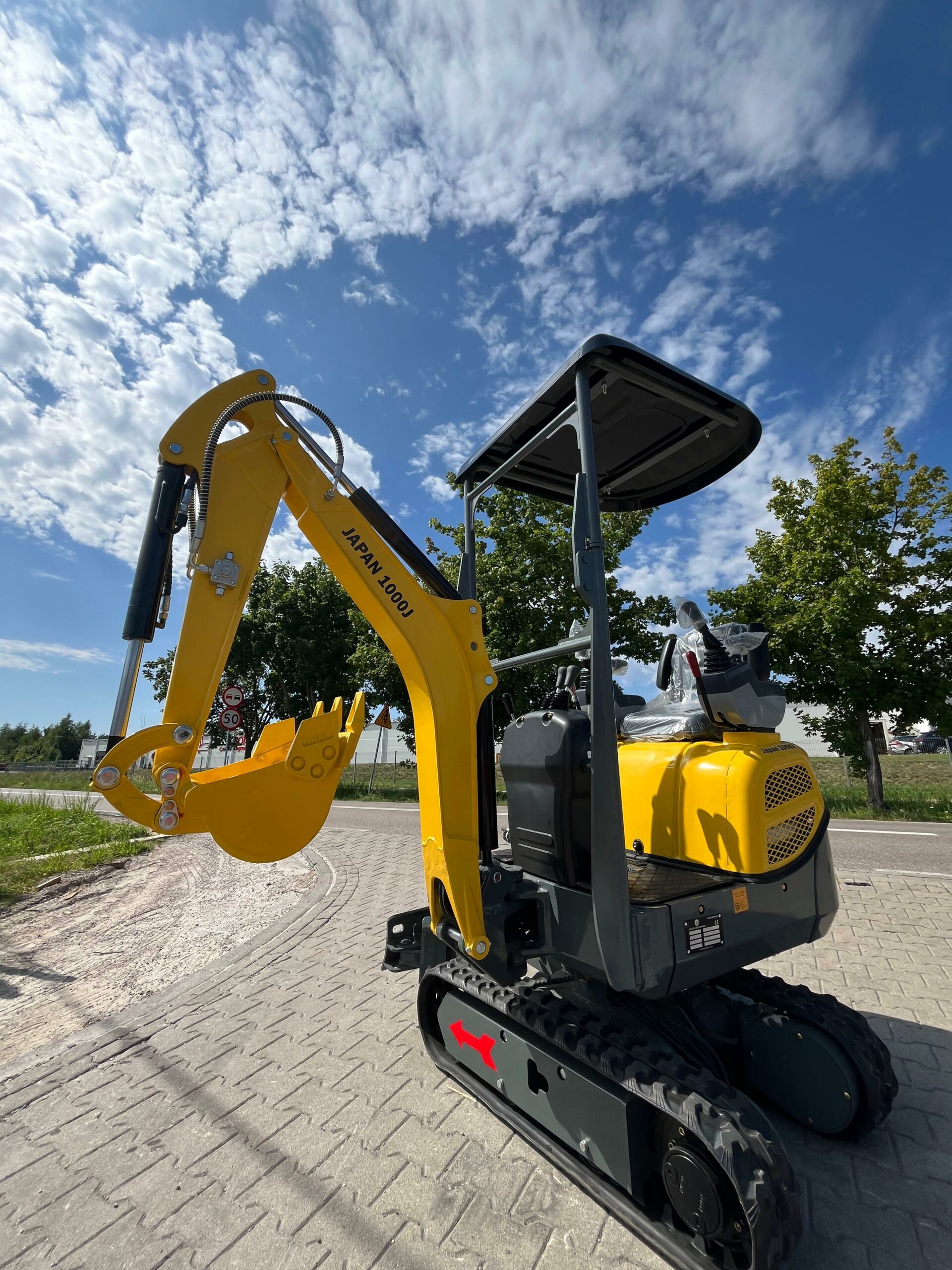

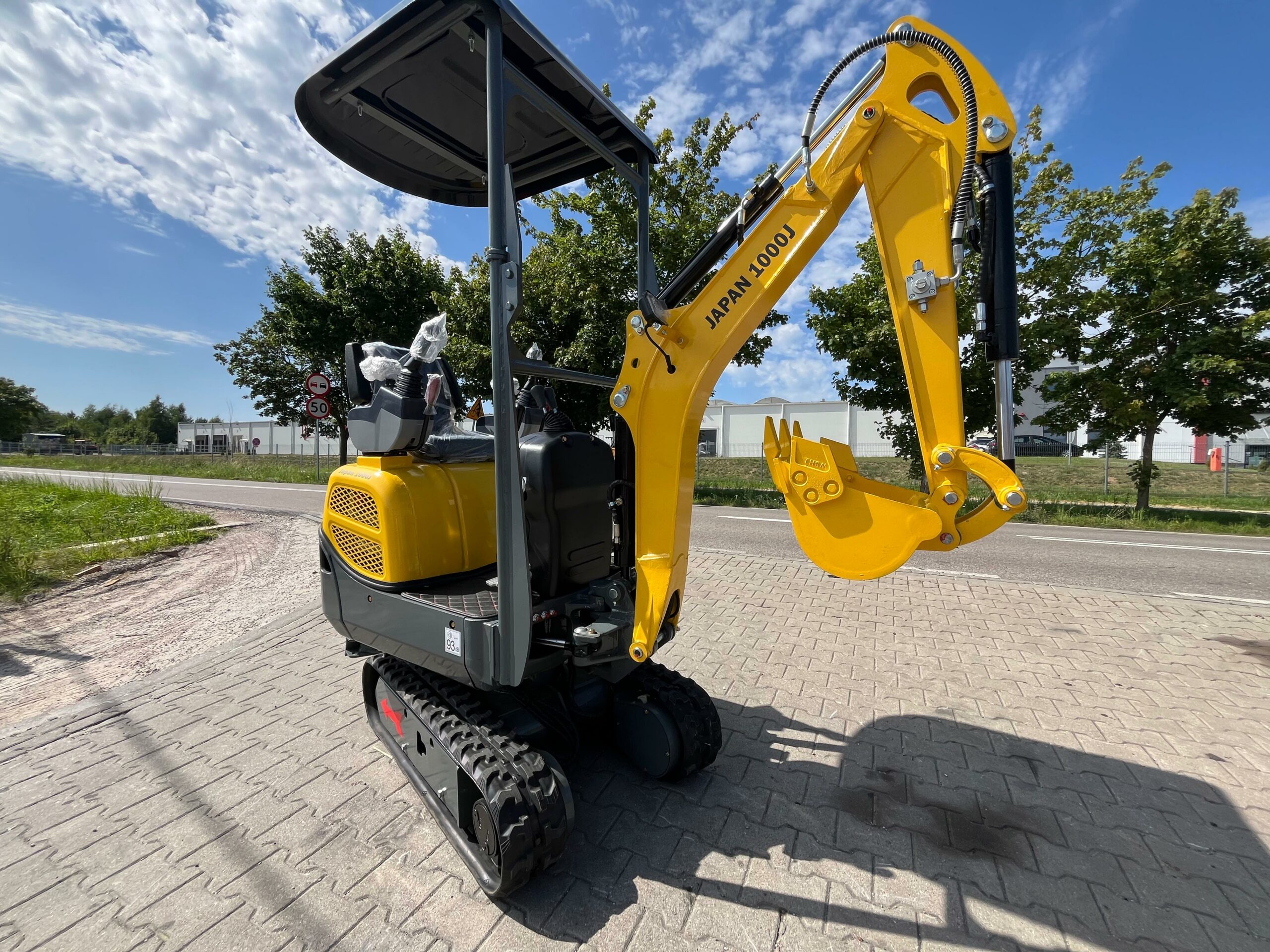

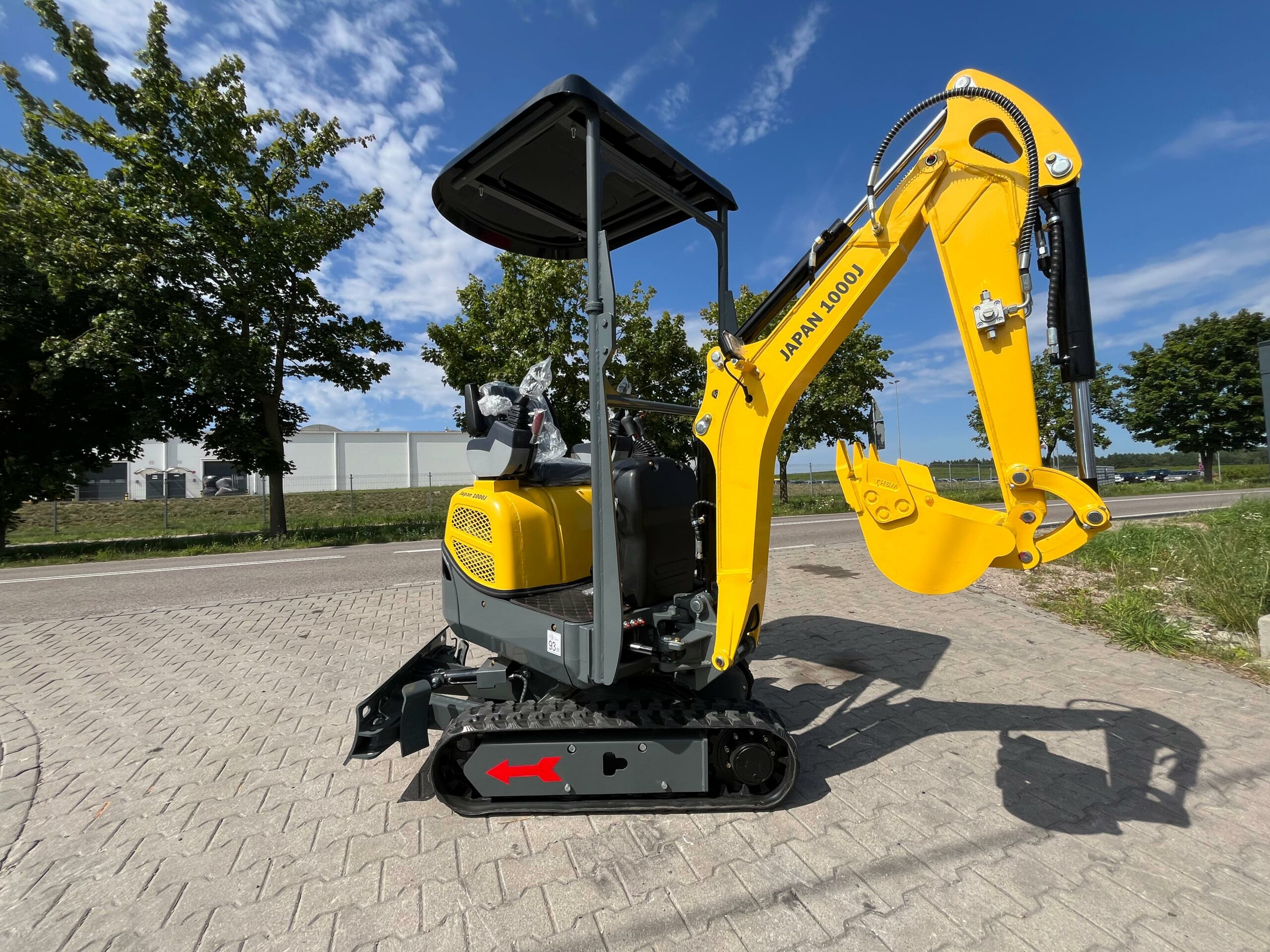

Mini Excavator
JAPAN 1000J


Crawler Excavator

The JAPAN 1000J mini excavator is designed for professionals needing precise, efficient, and flexible equipment. It features joystick controls, a movable arm, and compact dimensions, ensuring high mobility and comfort in tight and challenging conditions.

Kubota Engine – Power & Efficiency

Equipped with a 15 HP Kubota engine, the JAPAN 1000J delivers reliable power with low fuel consumption and meets strict emission standards.

Advanced Hydraulics – Durability & Safety

The Parkier main pump provides 20 MPa hydraulic pressure for excellent performance. Protected cylinders and hoses ensure durability even in demanding environments.

Joystick Control – Precision & Comfort

Joystick operation offers precise control of all machine functions, enhancing operator comfort and efficiency during long work sessions.

Flexible Operation – Movable Arm & Two Speeds

Movable arm and two travel speeds provide excellent flexibility and mobility, with protected drive motors ensuring reliable performance.

Impressive Work Range

With digging depth up to 1650 mm, digging height of 2610 mm, and blade lift of 345 mm, the JAPAN 1000J is perfect for excavation, leveling, and foundation tasks.
