Excavators
GG30BC
42.800 euro netto
Weight
9600 kg
Engine
YTO
Excavator bucket capacity
0.3 m³
Digging depth
4643 mm
Max. lifting capacity at highest point
2000 kg
Power
122.4 HP
Loader bucket capacity
1.2 m³
Bucket rotation angle
200 °
48.500 euro netto
Technical Data
Specification
Operating weight
9600 kg
Max. lifting capacity at maximum height
2000 kg
Excavator bucket capacity
0.3 m³
Loader bucket capacity
1.2 m³
Maximum digging force
5100 kgf
Backhoe boom swing angle
190 °
Bucket breakout force
54 kN
Hydraulic system
PWG (Italy)
Steering system
Danfoss
Drive axle
XCMG
Electronically controlled transmission
4 forward / 3 reverse gears
ROPS cab with air-conditioning
Yes
Italian load-sensing valve + piston pump
Yes

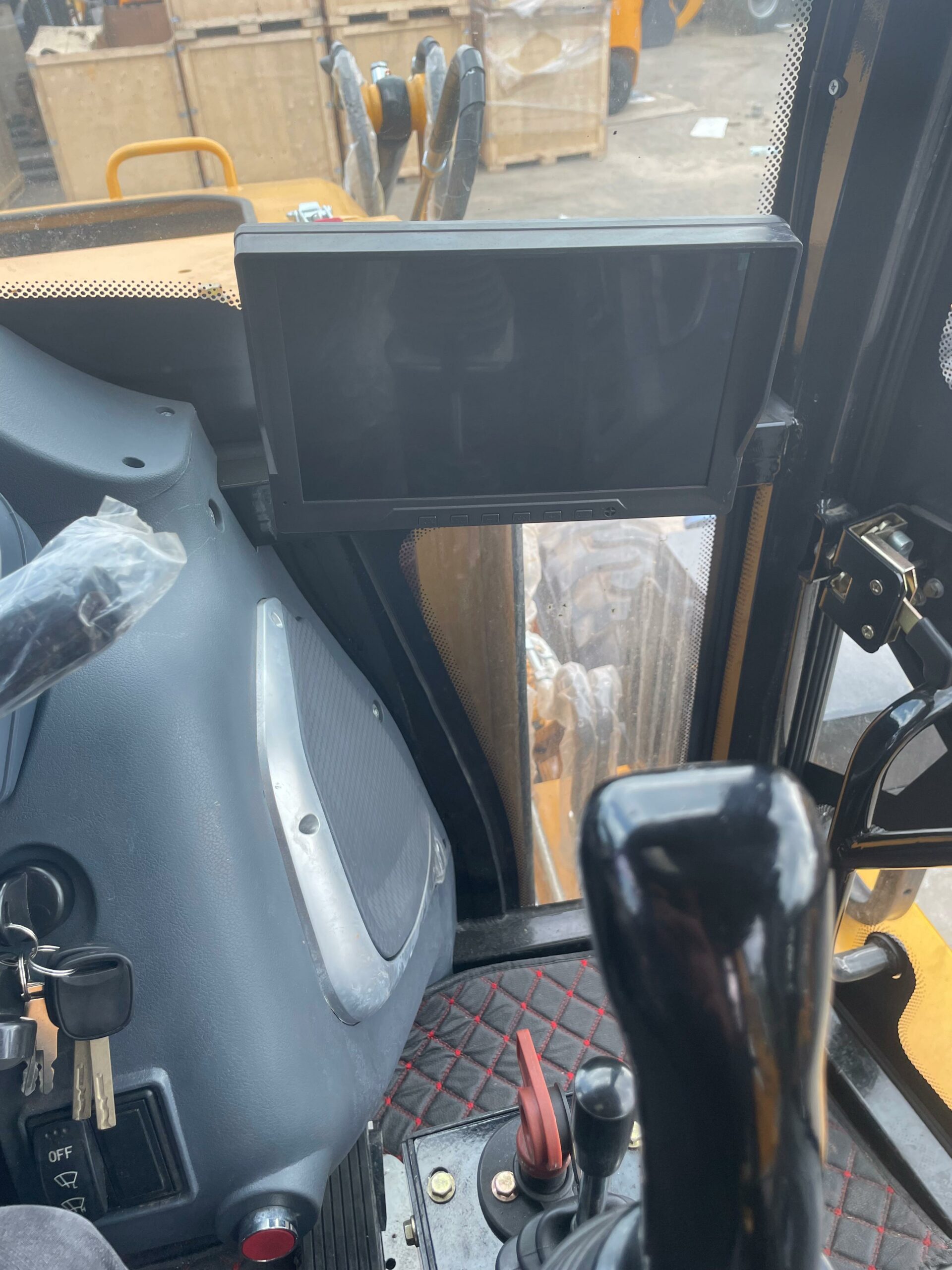

Rear-view camera
Yes
Telescopic rear boom
Yes
Motion stabilization system
Yes
2WD/4WD switch
Yes
Rear hydraulic line for breaker
Yes
Seat-integrated joystick
Yes
6-in-1 multifunction bucket
Yes
Engine
Model
YTO LR4A3Z-24
Type
Inline, 4-stroke diesel with direct injection
Bore × Stroke
105 × 125 mm
Rated power
90 kW (122.4 HP)
Rated speed
2400 rpm
Minimum fuel consumption
≤230 g/km·h
Max. torque
≥416 N·m
Engine displacement
4.33 L
Dimensions
Total length (with folded boom)
7,600 mm
Total width
2,260 mm
Cab height
2,890 mm
Max. working height
6246 mm
Max. loading height
4270 mm
Max. digging depth
4643 mm
Max. reach from swing center
6420 mm
Max. hinge height
3500 mm
Digging depth below ground
100 mm
Dump reach at full lift
1180 mm
Max. dump height at 45°
2829 mm
Boom height
3506 mm
Wheelbase
2285 mm
Dump angle
55 °
Bucket rotation angle
200 °

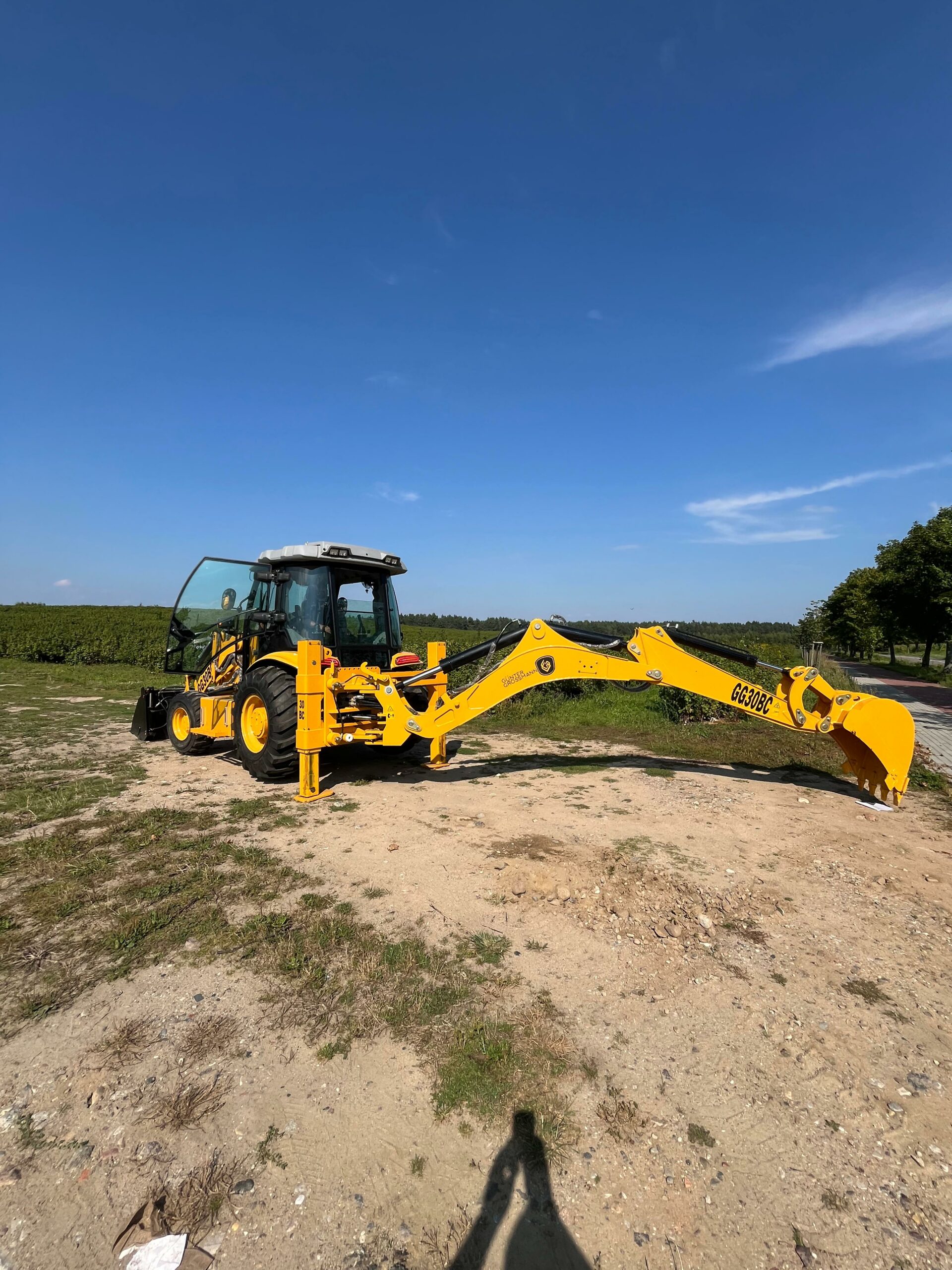

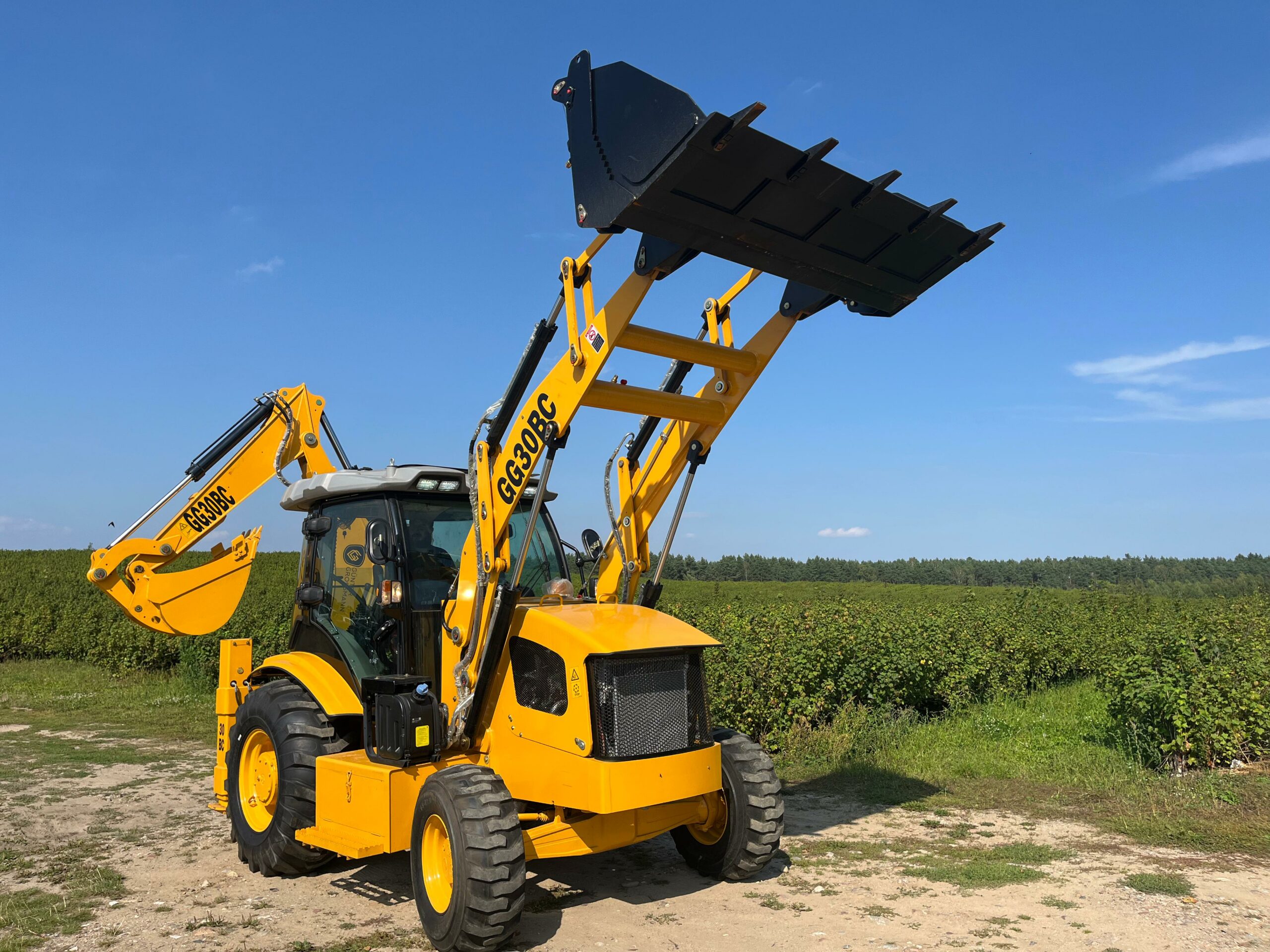

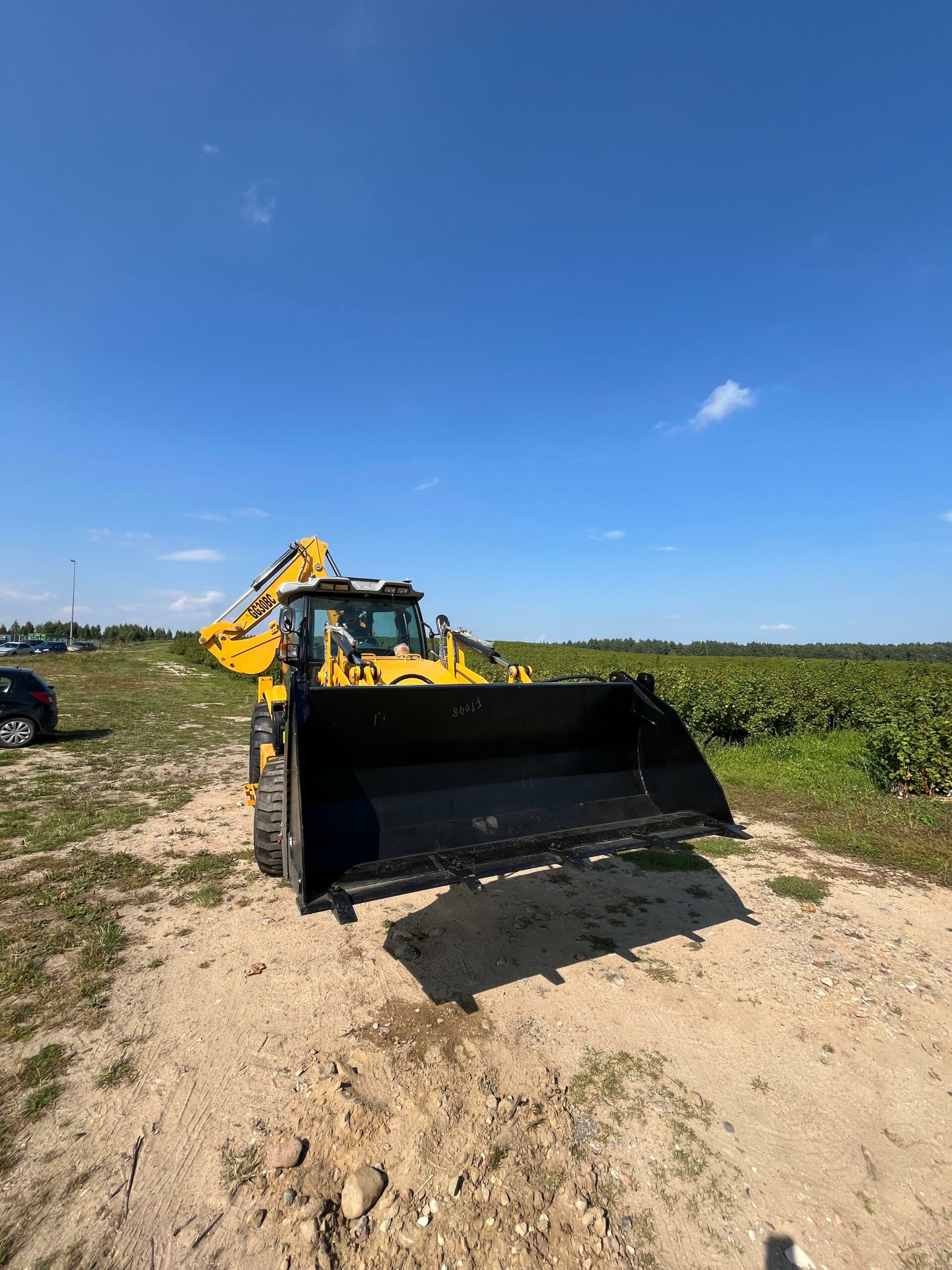

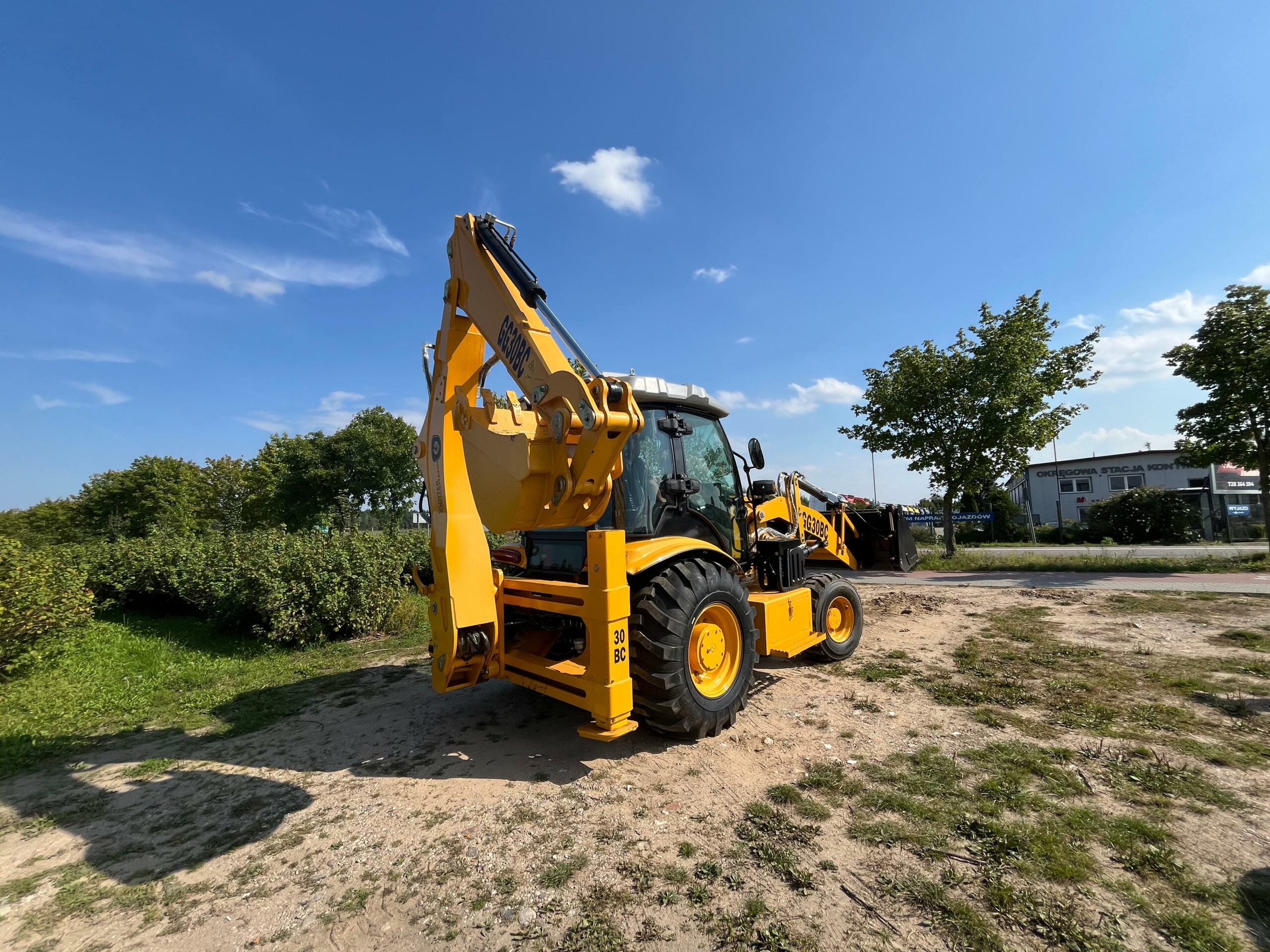

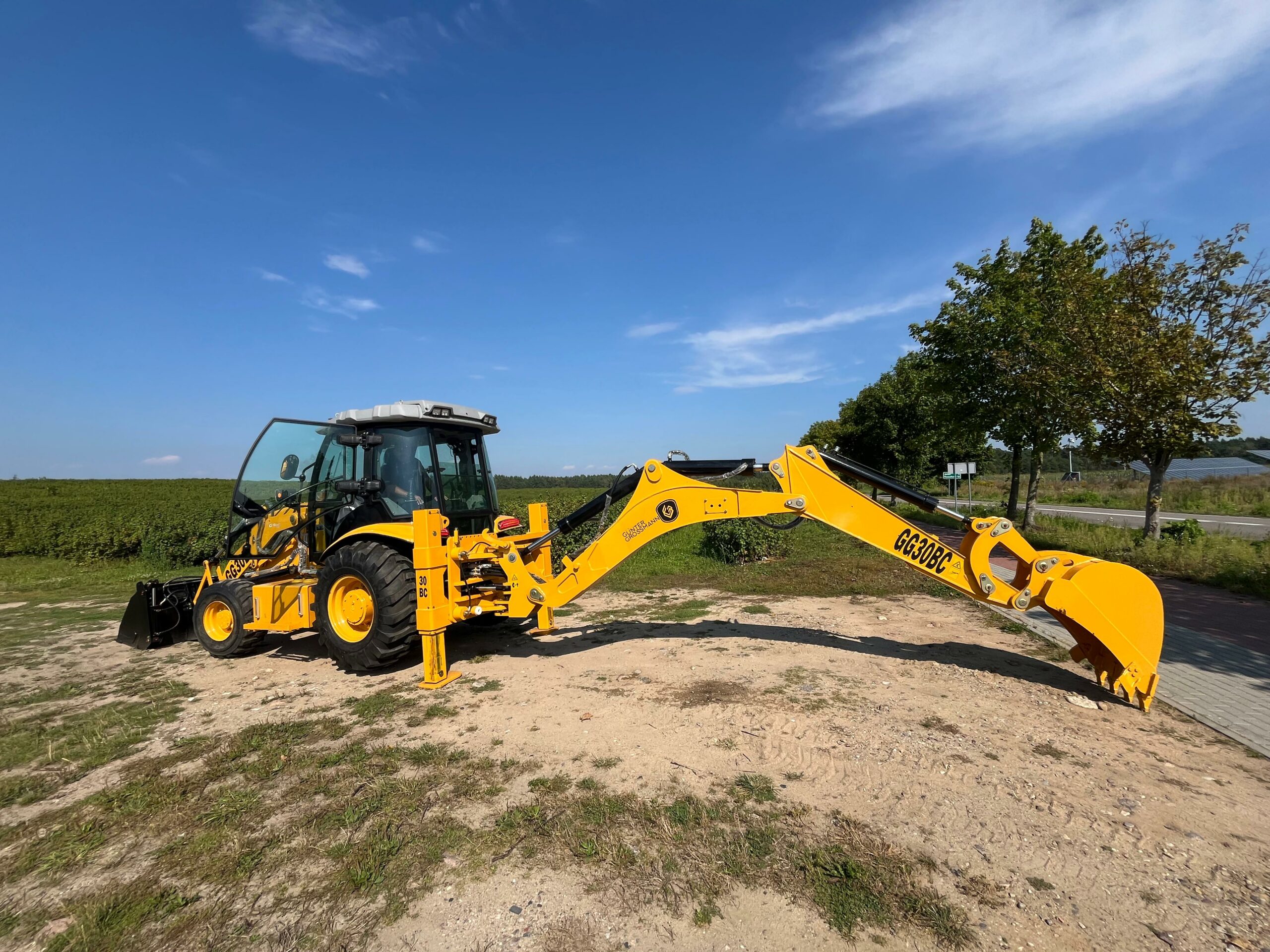

GG30BC Backhoe Loader
Backhoe Loader
The GG30BC backhoe loader is a versatile, efficient and heavy-duty machine designed for intensive construction, roadwork and industrial applications. With an operating weight of 9600 kg and a lifting capacity of 2000 kg at maximum lifting height, it offers excellent stability and superior work efficiency. The 1.2 m³ loader bucket and 0.3 m³ excavator bucket enable fast and precise loading and earthmoving operations.
Engine and Drive System
The machine is powered by a modern inline diesel engine YTO LR4A3Z-24 delivering 90 kW (122.4 HP) at 2400 rpm. The engine features direct fuel injection, low fuel consumption (≤230 g/km·h) and a high torque output of ≥416 N·m, ensuring strong traction and reliable operation in demanding conditions. The electronically controlled transmission offers 4 forward gears and 3 reverse gears, providing smooth driving performance and precise maneuverability.
Hydraulic System and Control
The advanced PWG (Italy) hydraulic system combined with an Italian load-sensing valve and piston pump ensures exceptionally smooth and dynamic operation. The maximum digging force reaches 5100 kgf, while the bucket breakout force is as high as 54 kN. The steering system from renowned brand Danfoss guarantees precise handling, and the XCMG drive axle enhances durability and overall machine reliability.
Operator Comfort and Safety

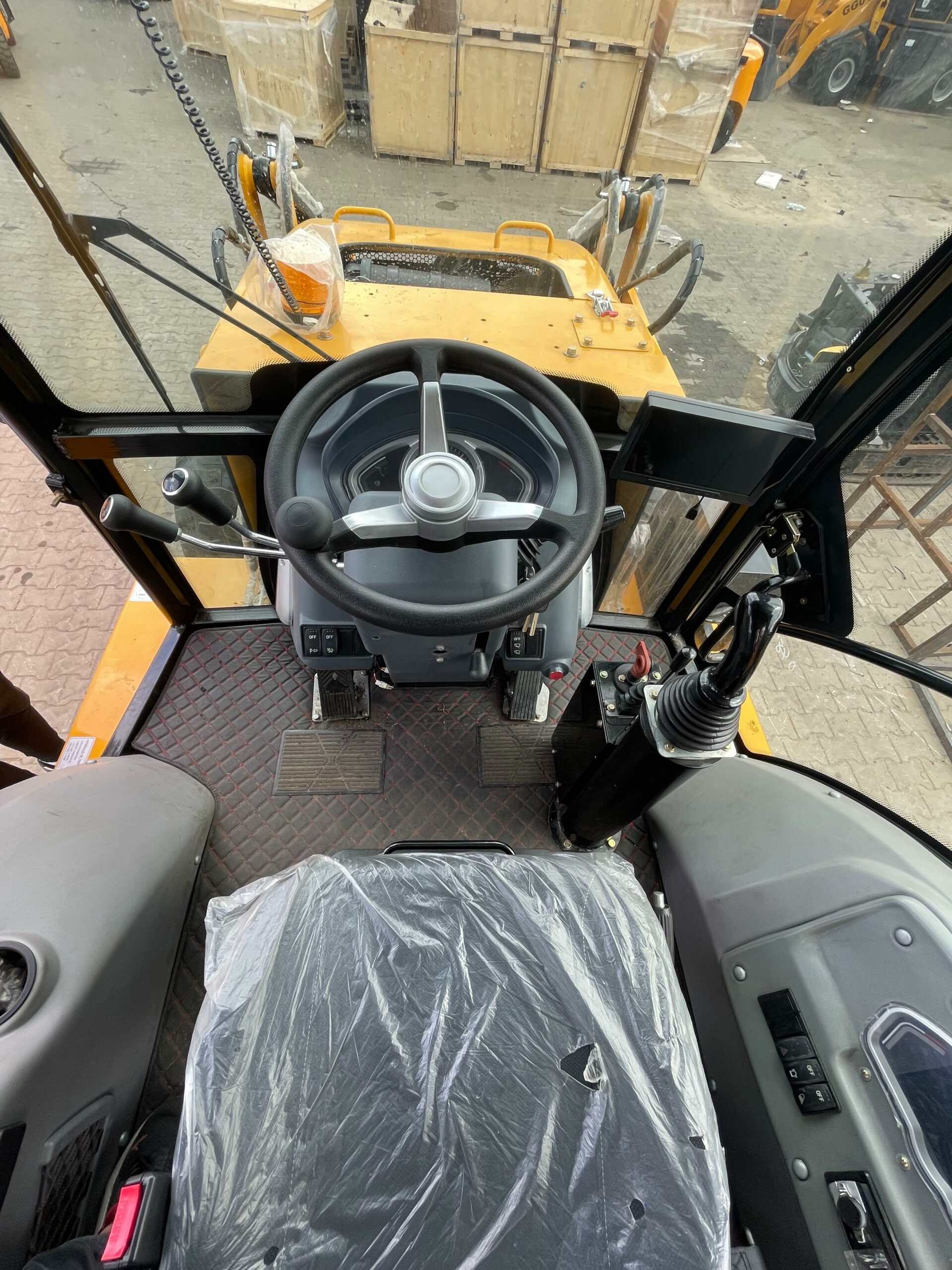

The machine features a spacious ROPS cab equipped with an efficient air-conditioning system, ensuring a high level of operator comfort throughout the working day. Additional features such as a rear-view camera, motion stabilization system, and a seat-integrated joystick significantly improve safety and operational precision. The 2WD/4WD switch allows the drive mode to be adjusted to terrain conditions, while the rear hydraulic line enables the installation of a breaker hammer.
Dimensions and Construction
Thanks to its compact dimensions – 5934 mm in length, 2220 mm in width, and 2950 mm in height – the machine offers excellent maneuverability even in confined spaces. The wheelbase measures 2285 mm. The bucket rotation angle of 200° and the backhoe boom swing angle of 190° provide a broad operational range. Standard equipment also includes a multifunctional 6-in-1 bucket, increasing the machine’s versatility in various applications.
