Loaders
GG018
Operational weight
4300 kg
Engine brand
Yunnei
Number of cylinders
4
Lifting height
3 m
Lifting capacity
1800 kg
Engine power
45 kW
Engine speed
2400 rpm
Bucket capacity
0.6 m³
Base price excl. VAT
22.500,00 €
Additional equipment
0,00 €
Total price
excl. VAT and shipping costs
excl. VAT and shipping costs
22.500,00 €
Additional equipment
Check out the offer
Technical Data
Specification
Rated Load Capacity:
1800 kg
Operating Weight:
4300 kg
Engine brand:
Yunnei
Engine model:
DEF20CDF4
Rated power:
45 kW
Rated speed:
2400 rpm
Number of cylinders:
4
Cooling system:
Water cooling
Hydraulic pump model:
CBG1018
Transmission model:
YJ265
Steering system pressure:
12 MPa
Working system pressure:
16 MPa
Fuel tank capacity:
45 L
Hydraulic oil tank capacity:
60 L
Brake oil capacity:
0.6 L
Working range
Lifting height:
3 m
Bucket capacity:
0.6 m³
Bucket lifting time:
5.4 s
Bucket lowering time:
4.5 s
Bucket dumping time:
1.0 s
Max. travel speed (km/h):
Forward I: 8, II: 16 / Reverse I: 8, II: 16
Max. traction force:
2587 kgf
Min. turning radius:
4500 mm
Steering angle:
±30 °
Max. gradeability:
35%
Bucket width:
1800 mm
Dimensions
Length:
5100 mm
Width:
1880 mm
Height:
2690 mm
Wheelbase:
2240 mm
Wheel track:
1640 mm
Ground clearance:
280 mm
Additional equipment (for reference)
4-in-1 Bucket
Auger
Bale Grab
Grapple (Crocodile-type)

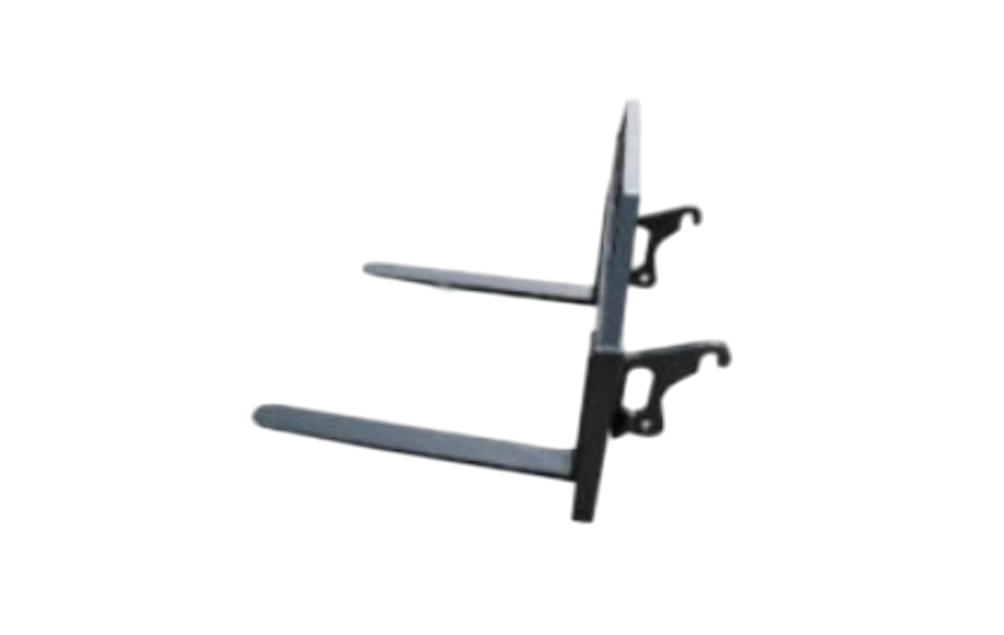

Pallet Forks
Mower

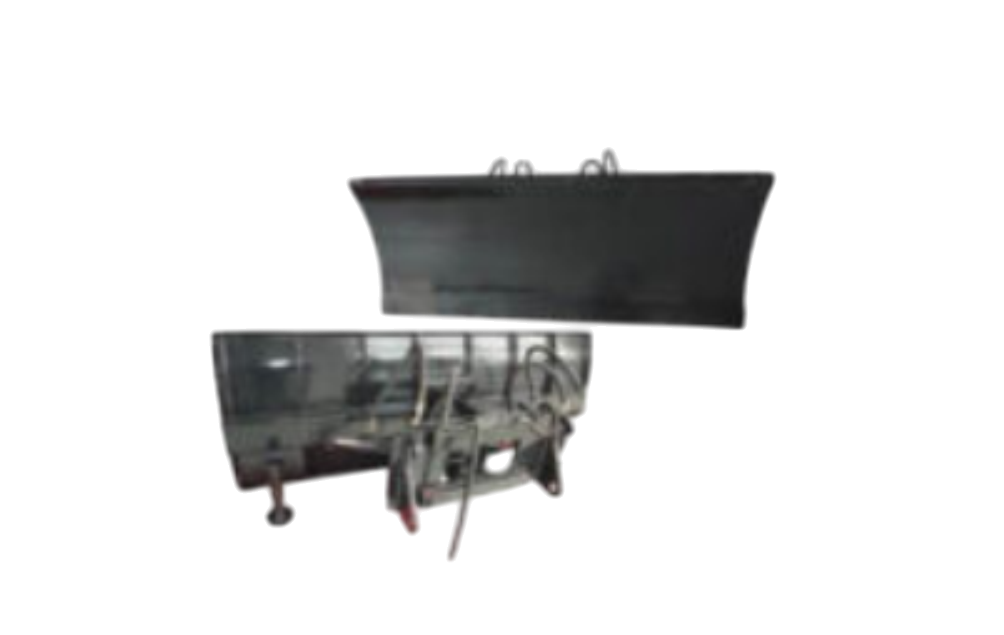

Snow Plow
Sweeper
Bucket with grapple

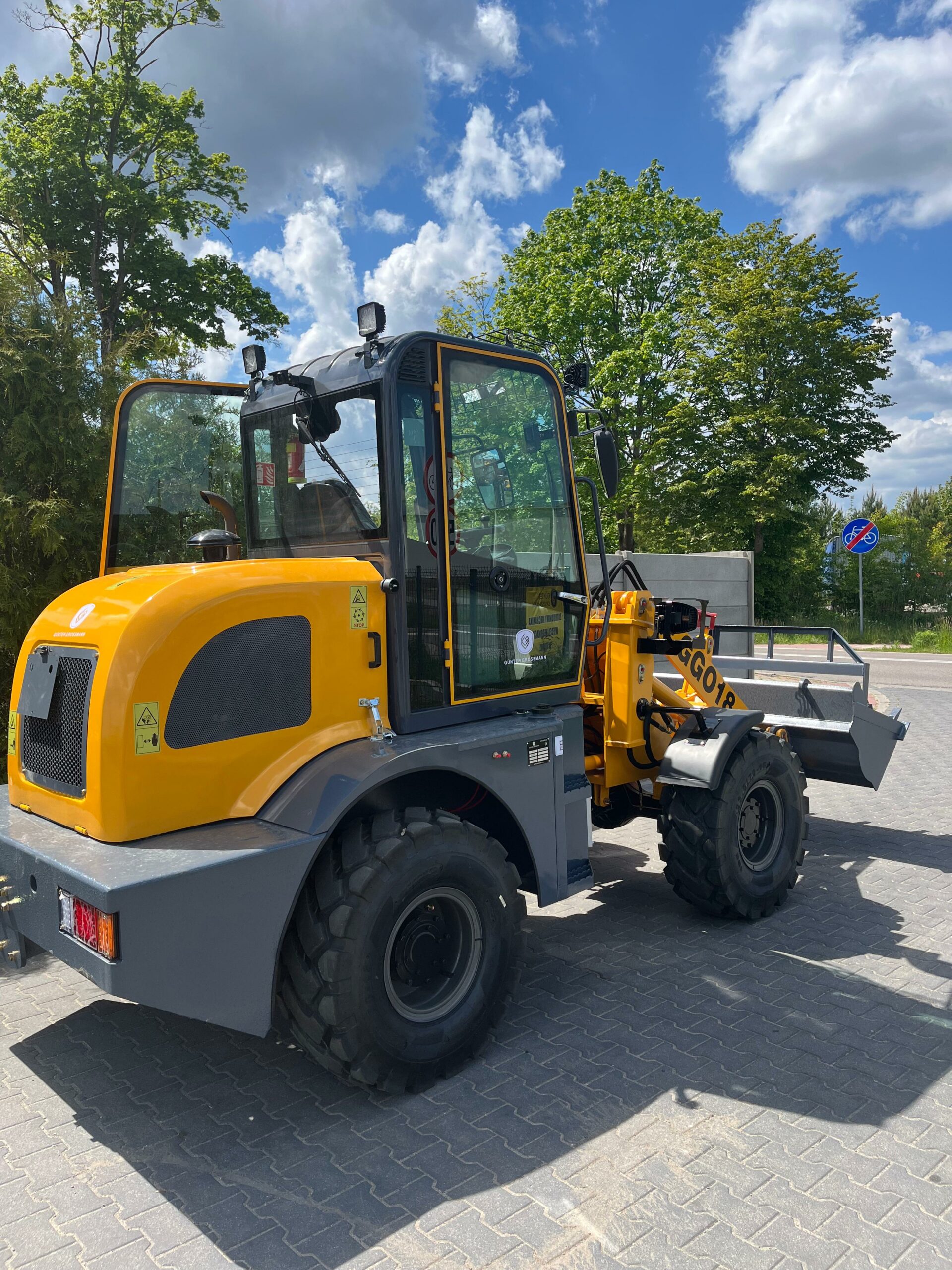

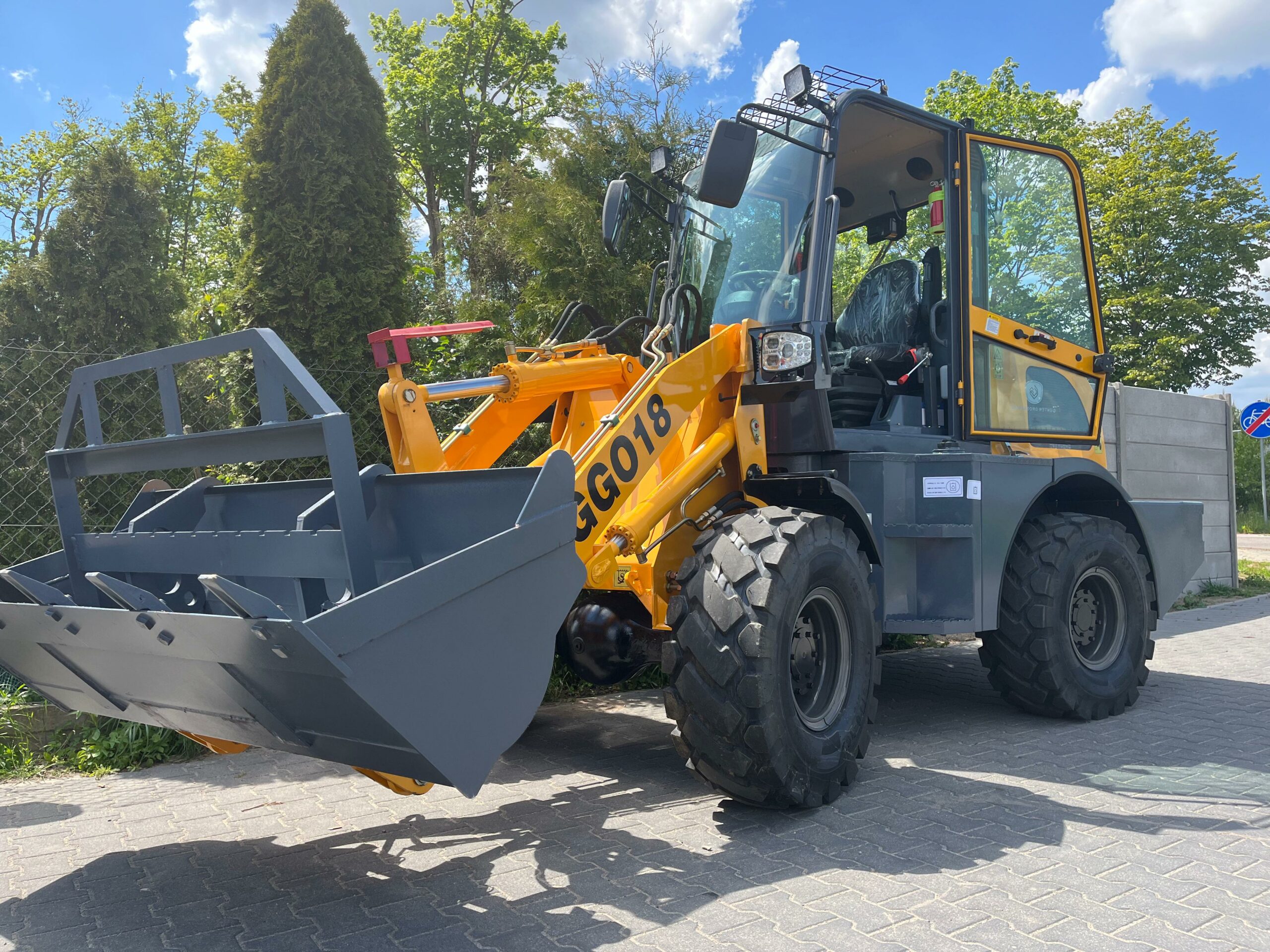

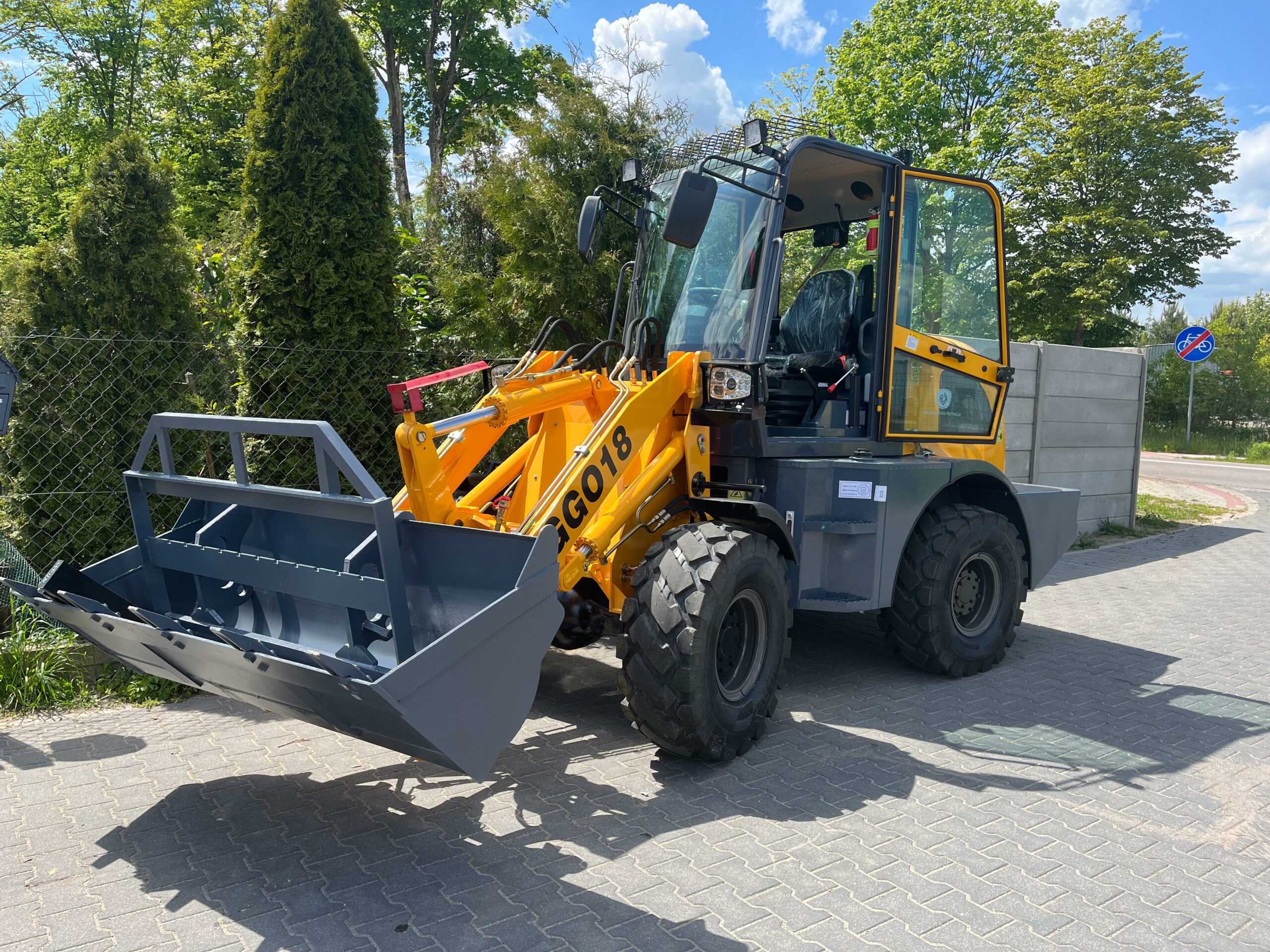

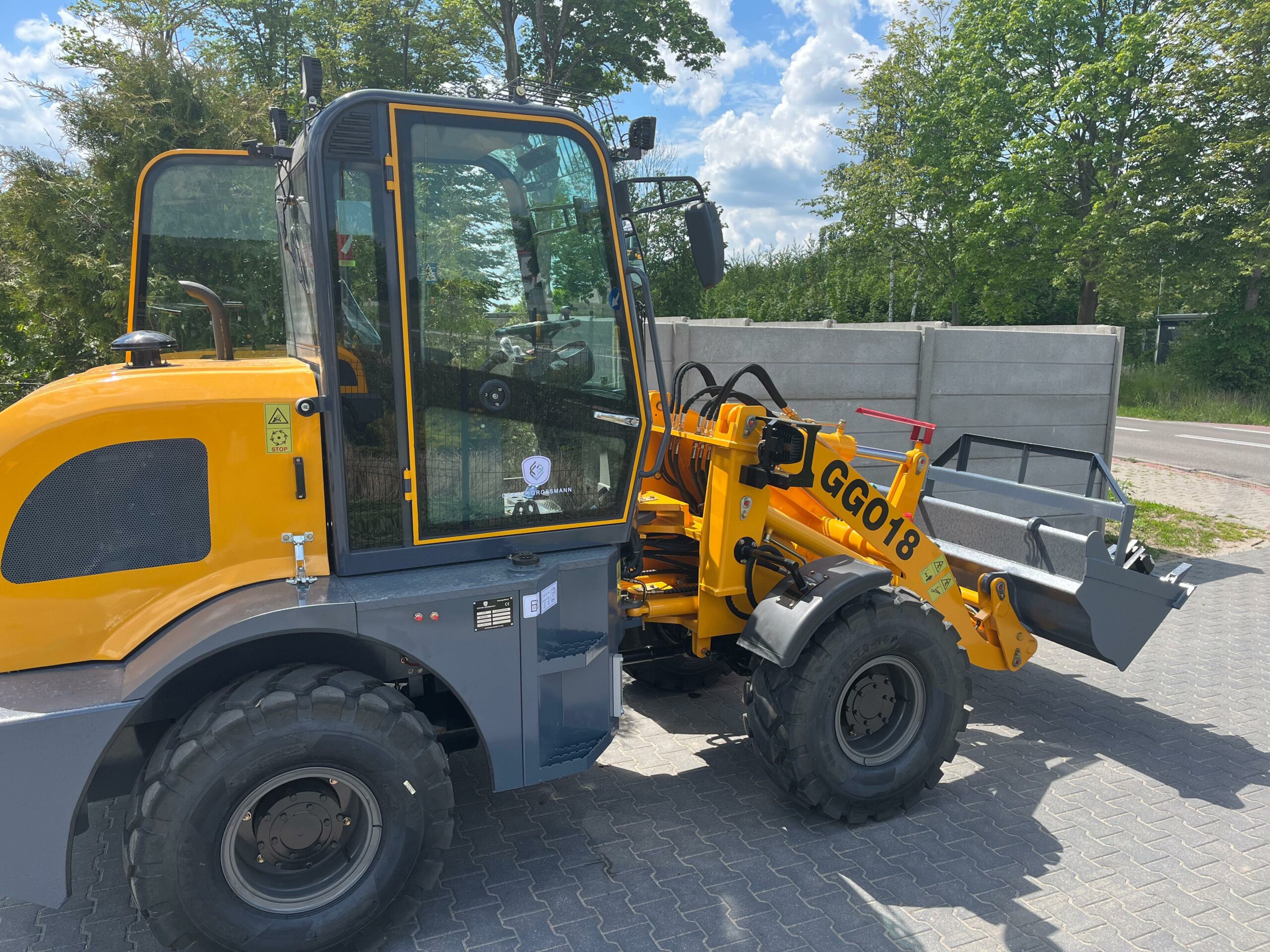

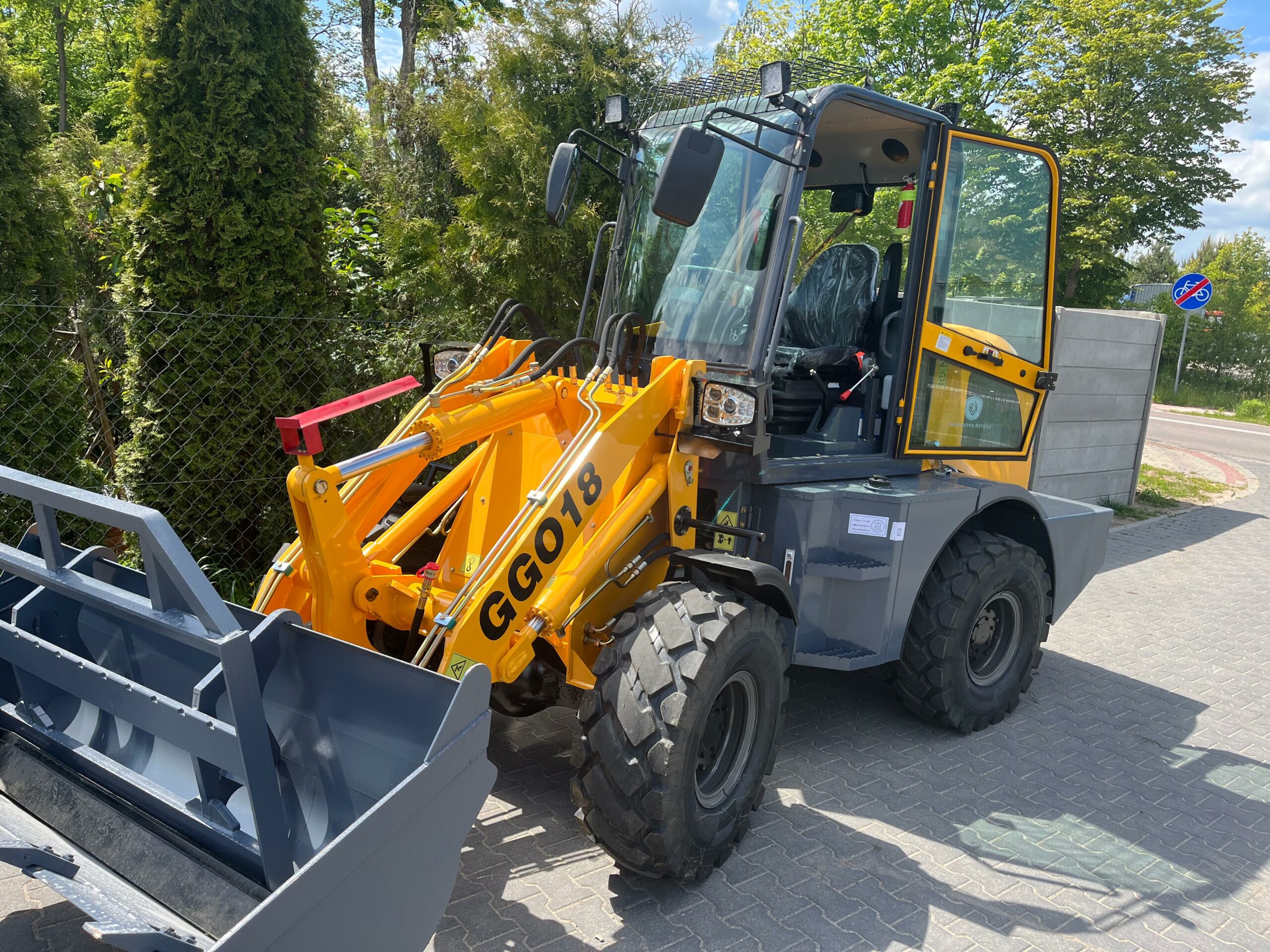

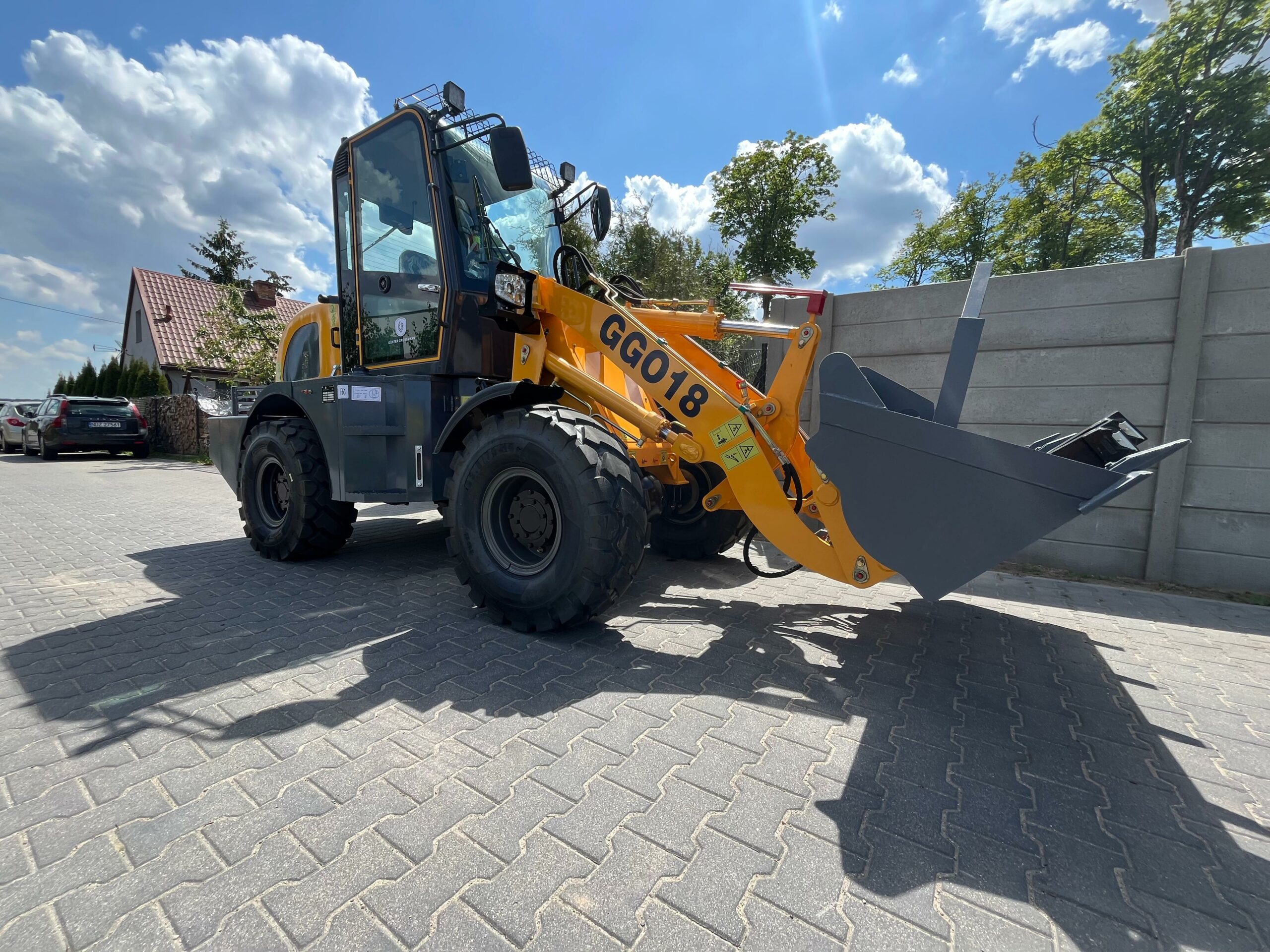

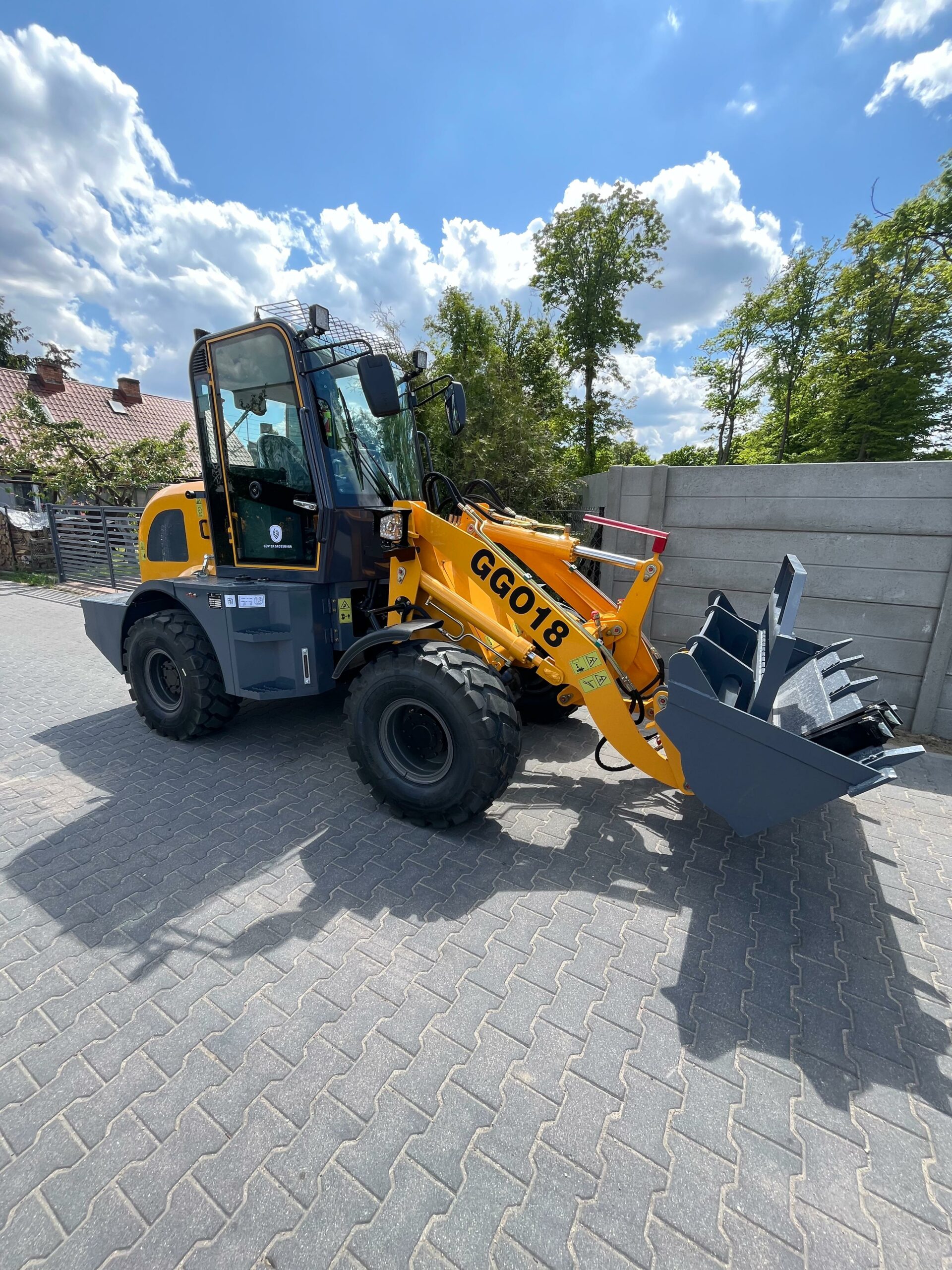

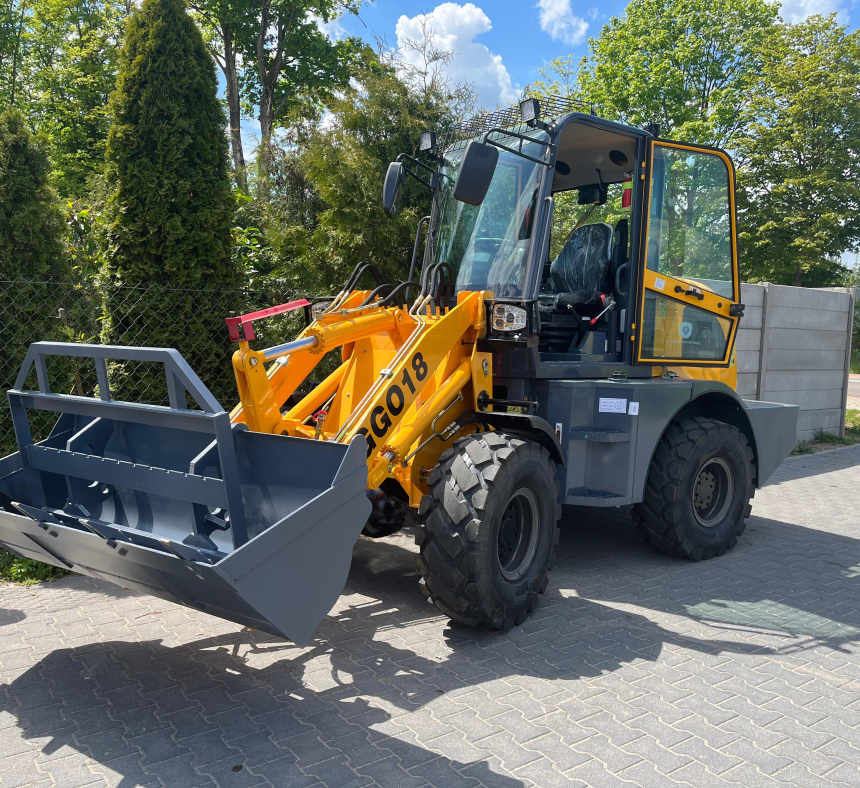

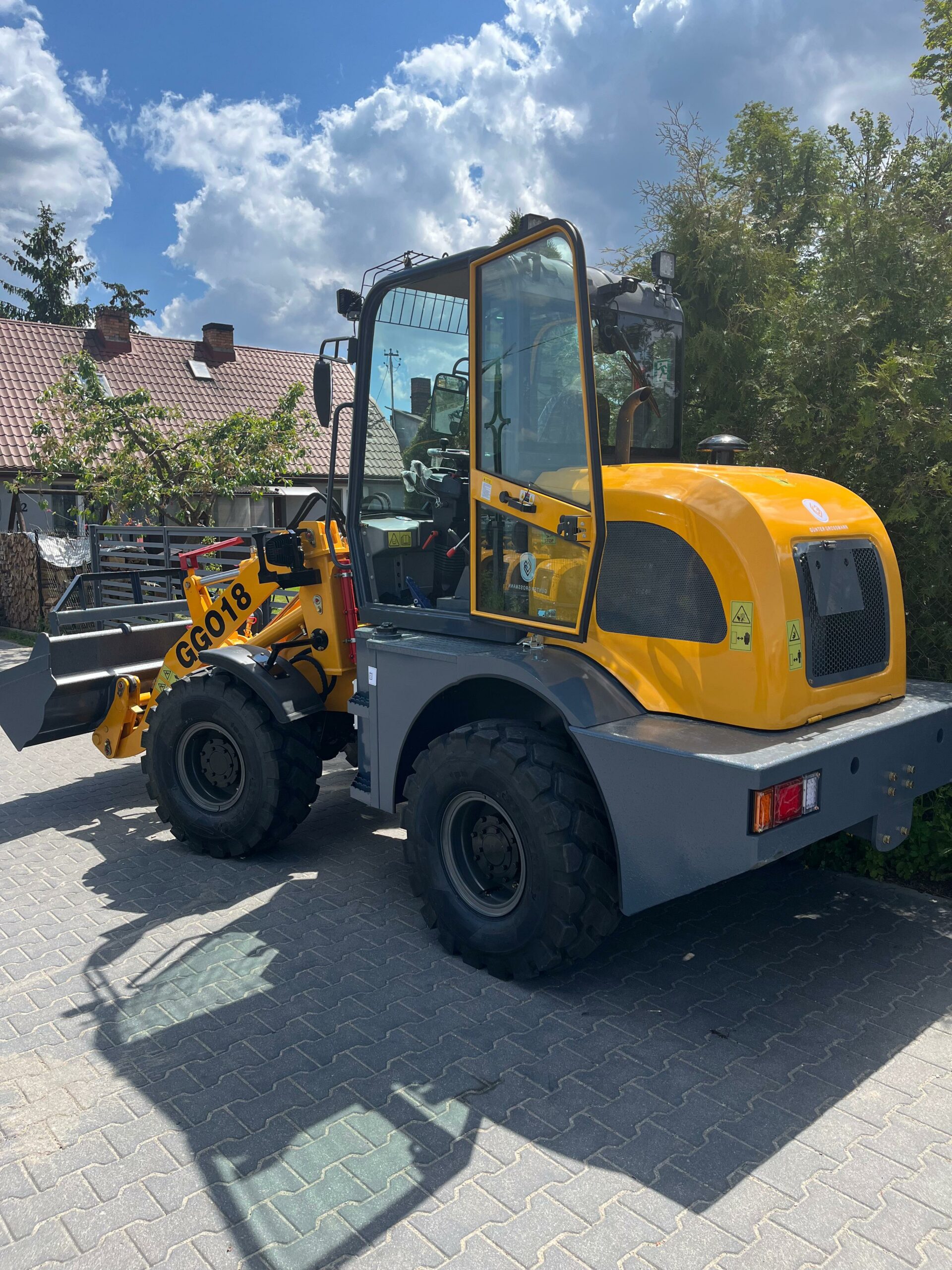

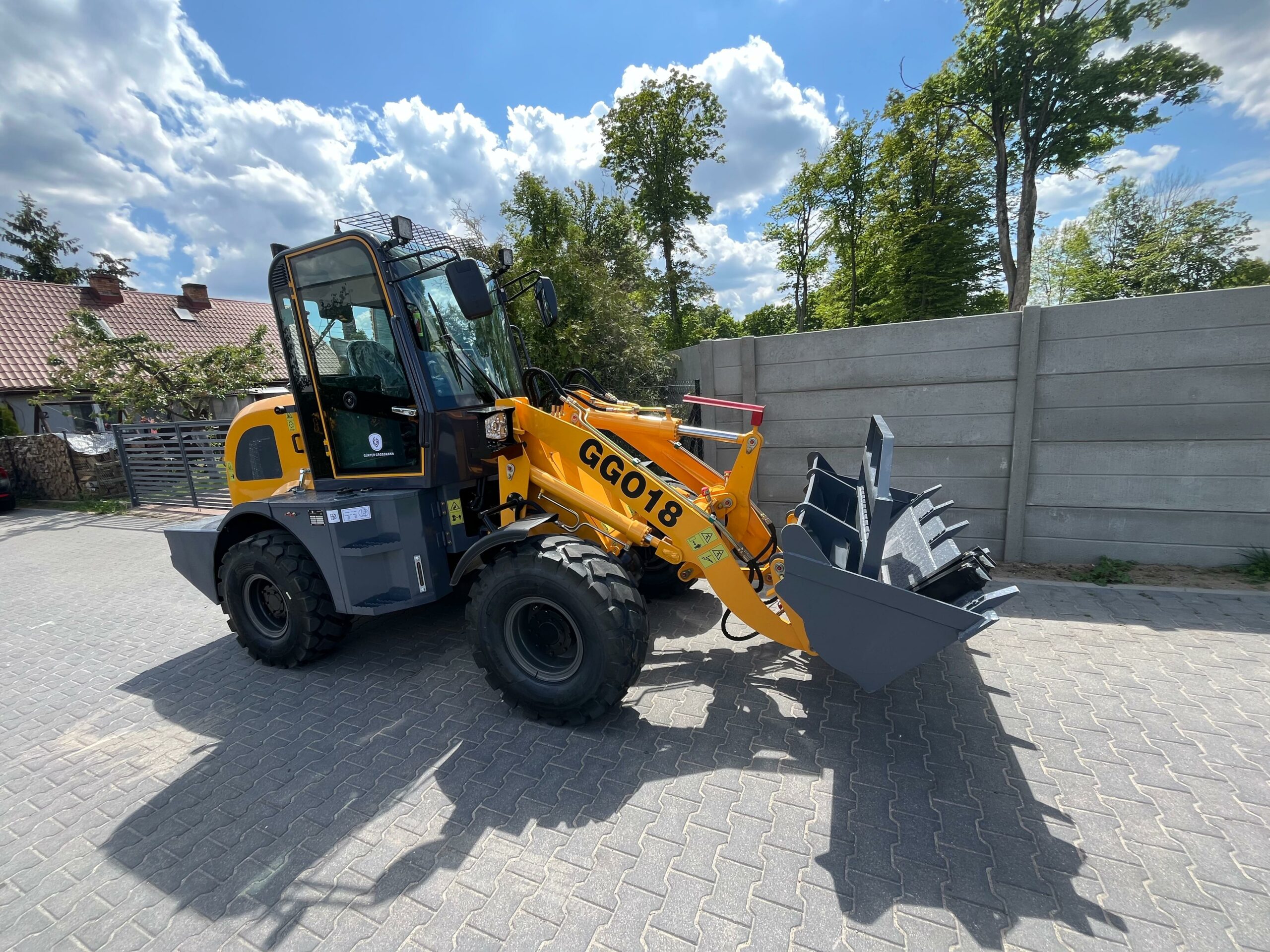

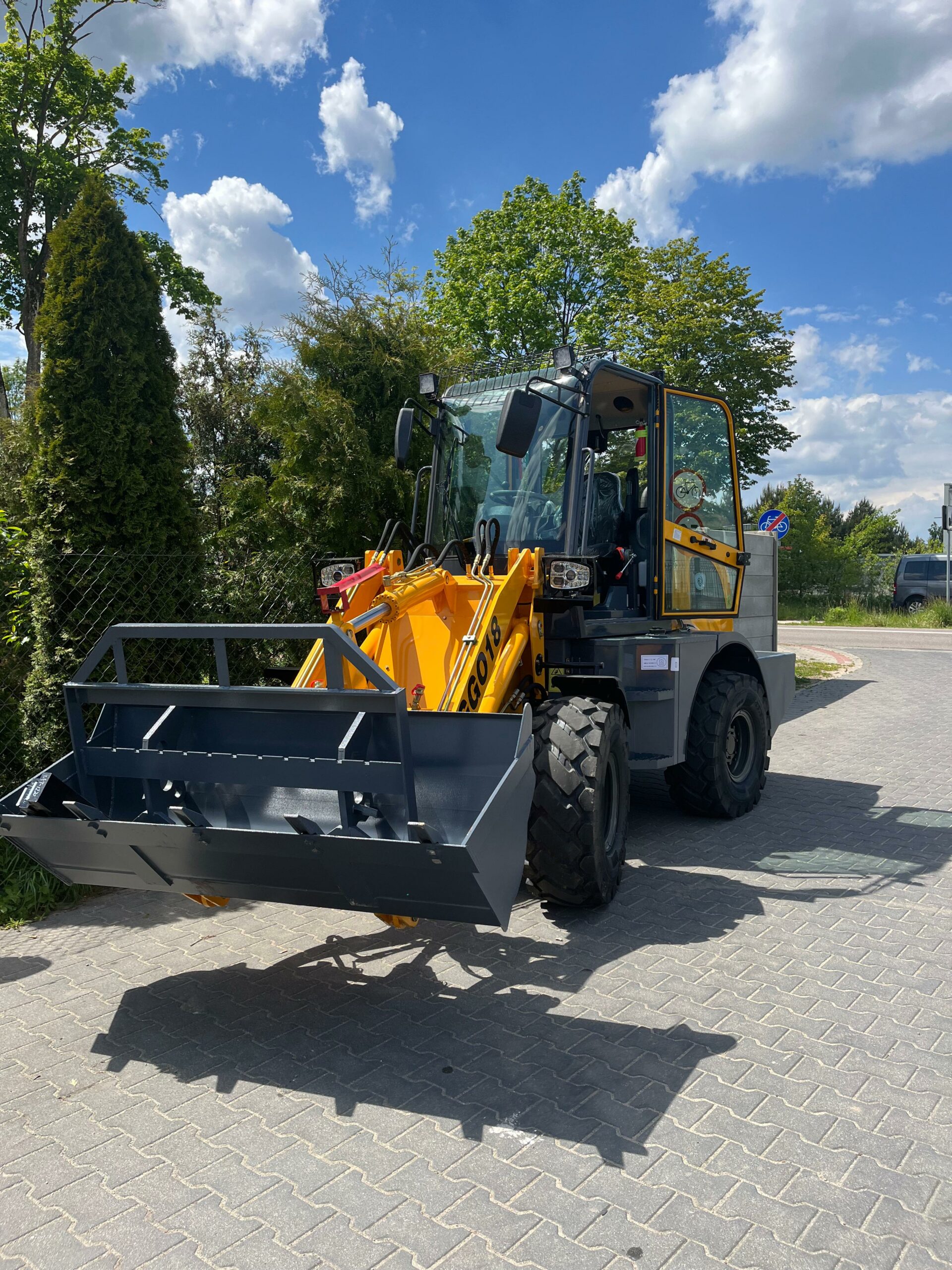

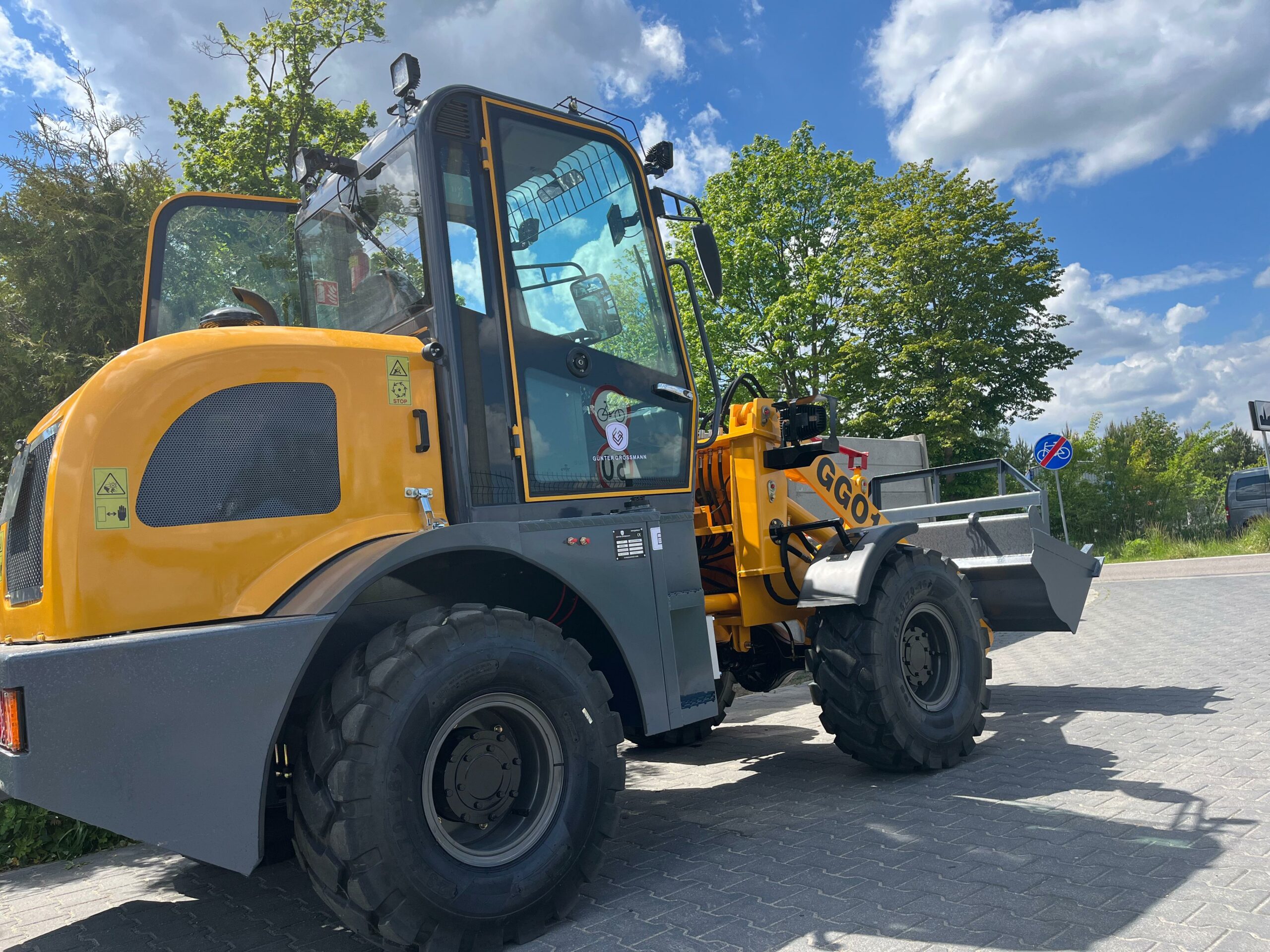

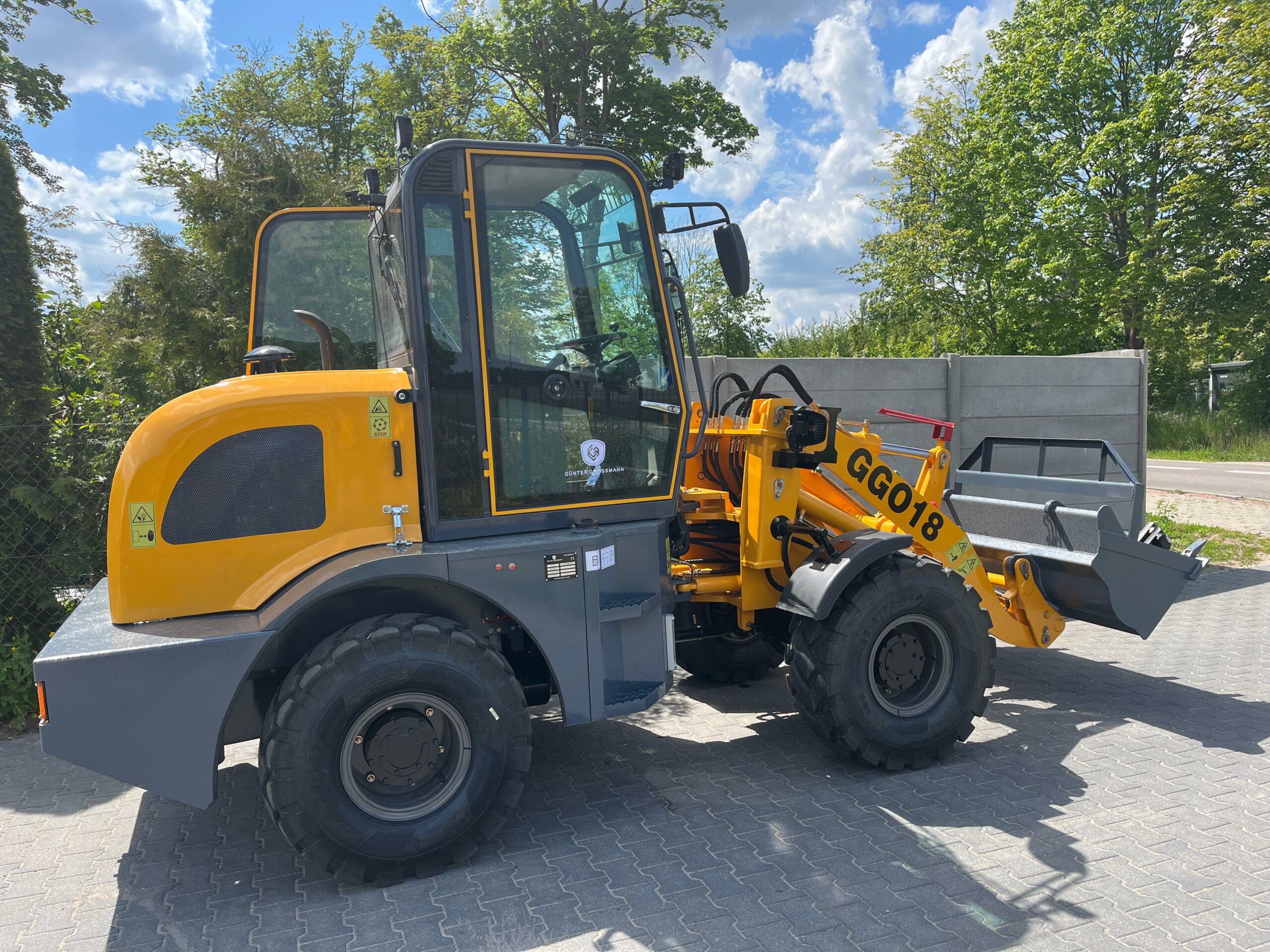

Loader GG 018
Articulated Wheel Loader
The GG018 Gunter Grossmann is a powerful, precise, and efficient articulated loader designed for construction, agriculture, and municipal work in challenging conditions.
Reliable Power
With a lifting capacity of 1800 kg and an operating weight of 4300 kg, the GG018 ensures stability and handles heavy material transport with ease.
Durable Engine
Powered by the fuel-efficient Yunnei DEF20CDF4 45 kW four-cylinder, water-cooled engine, delivering reliable performance under demanding use.

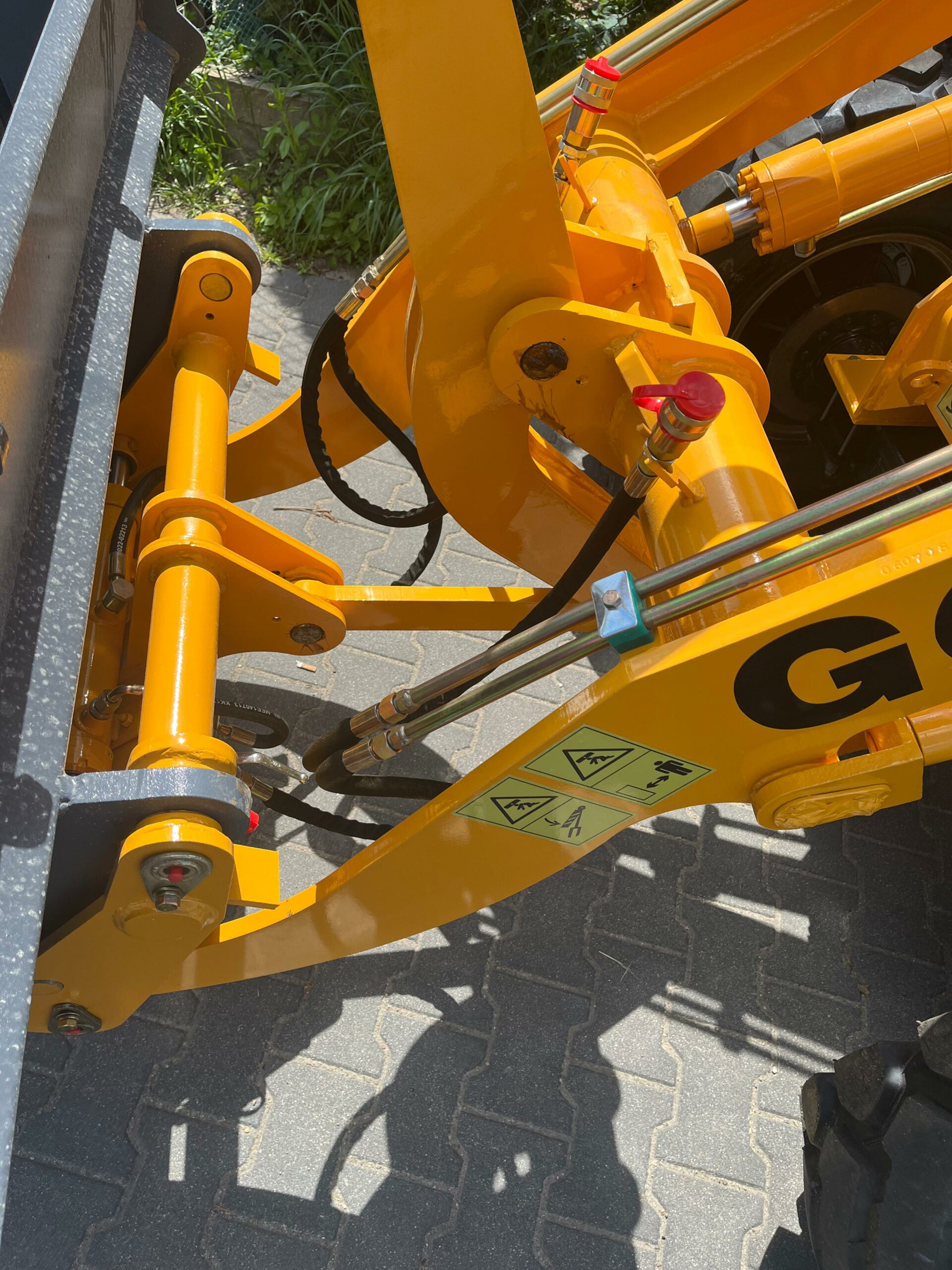

Efficient Hydraulics
Equipped with the CBG1018 hydraulic system and YJ265 steering/transmission, the GG018 offers smooth bucket operation and precise control, even in tight spaces.
Excellent Maneuverability
Articulated design with ±30° steering and a 4500 mm turning radius enables easy operation in confined areas. Travel speed reaches up to 16 km/h for quick site moves.
Compact Yet Capable
Measuring 5.1 m long and under 1.9 m wide, with 280 mm ground clearance, the GG018 navigates narrow and uneven terrains efficiently.
Gallery
